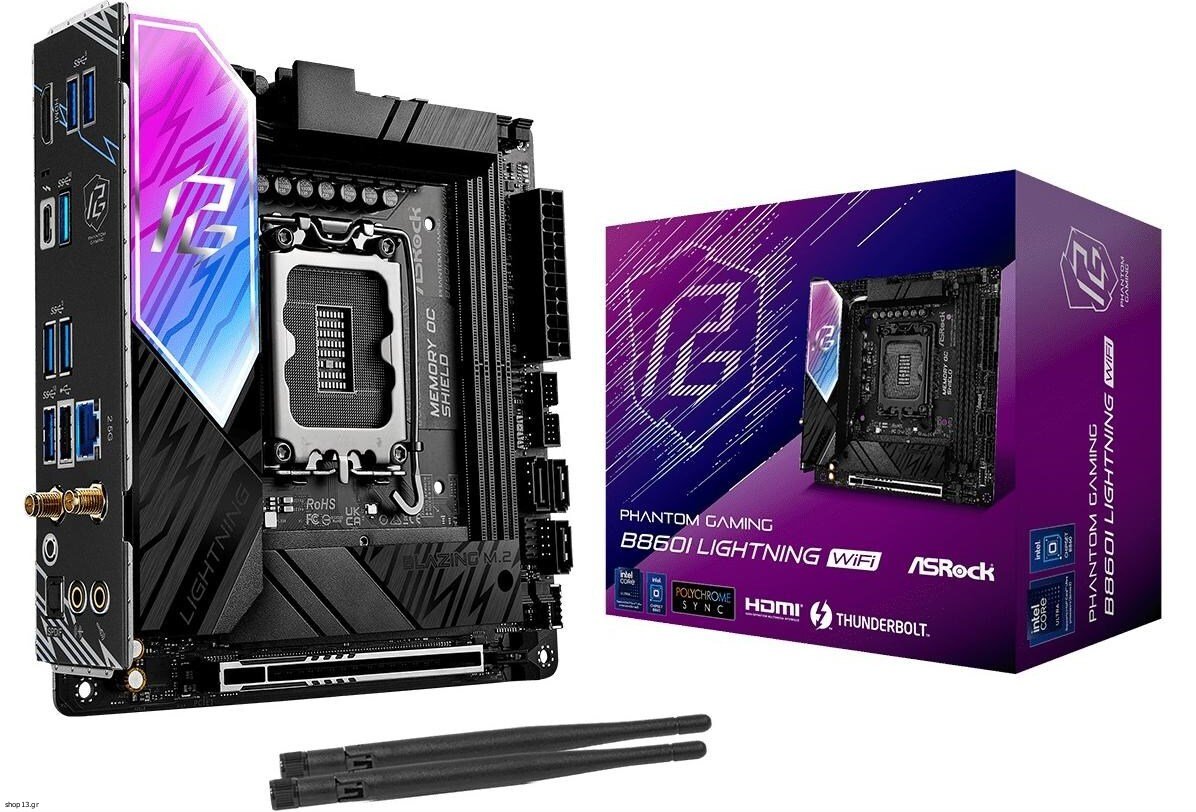

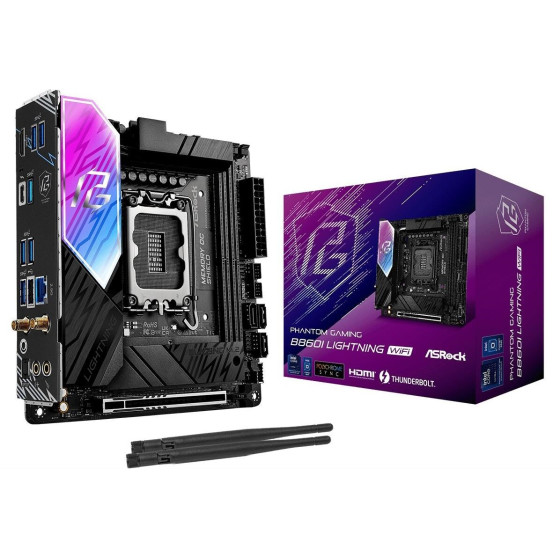

Asrock Motherboard - (B860I Lightning WiFi)

Processor
Processor manufacturer: Intel
Supported processor sockets: LGA 1851
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)

Graphics
Maximum resolution: 7680 x 4320 pixels
HDCP: Yes
On-board graphics card family: Intel Iris Xe Graphics

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel B860
Windows operating systems supported: Windows 11 x64
Product colour: White
Motherboard form factor: Mini-ITX
Audio chip: Realtek ALC1220
Motherboard chipset family: Intel

Memory
Number of memory slots: 2
Unbuffered memory: Yes
ECC ?ompatibility: Non-ECC
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel

Weight & dimensions
Width: 170 mm
Depth: 170 mm

Network
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Bluetooth version: 5.3
Top Wi-Fi standard: Wi-Fi 6E (802.11axe)
MU-MIMO: Yes
Wi-Fi: Yes

Internal I/O
Number of SATA III connectors: 3
Number of USB 3.2 Gen 2 Type-C ports : 1
Number of CPU fan connectors: 1
Number of chassis fan connectors: 1
Number of water pump connectors: 1
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 2

BIOS
BIOS type: UEFI AMI

Storage controllers
RAID levels: 5, 0, 1
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of storage drives supported: 5

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
S/PDIF out port: Yes
Thunderbolt ports quantity: 1
HDMI ports quantity: 1
Antennas quantity: 2
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-C, USB Type-A
MIC input: 1
Flashback BIOS button: Yes
Number of USB 3.2 Gen 1 ports: 4

Expansion slots
Number of M.2 (M) slots: 4
Number of SATA III connectors: 3
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1

Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.


Warranty: warranty 36 months
