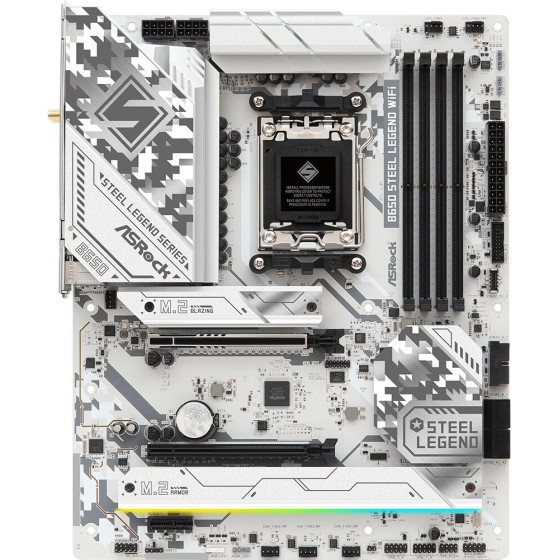

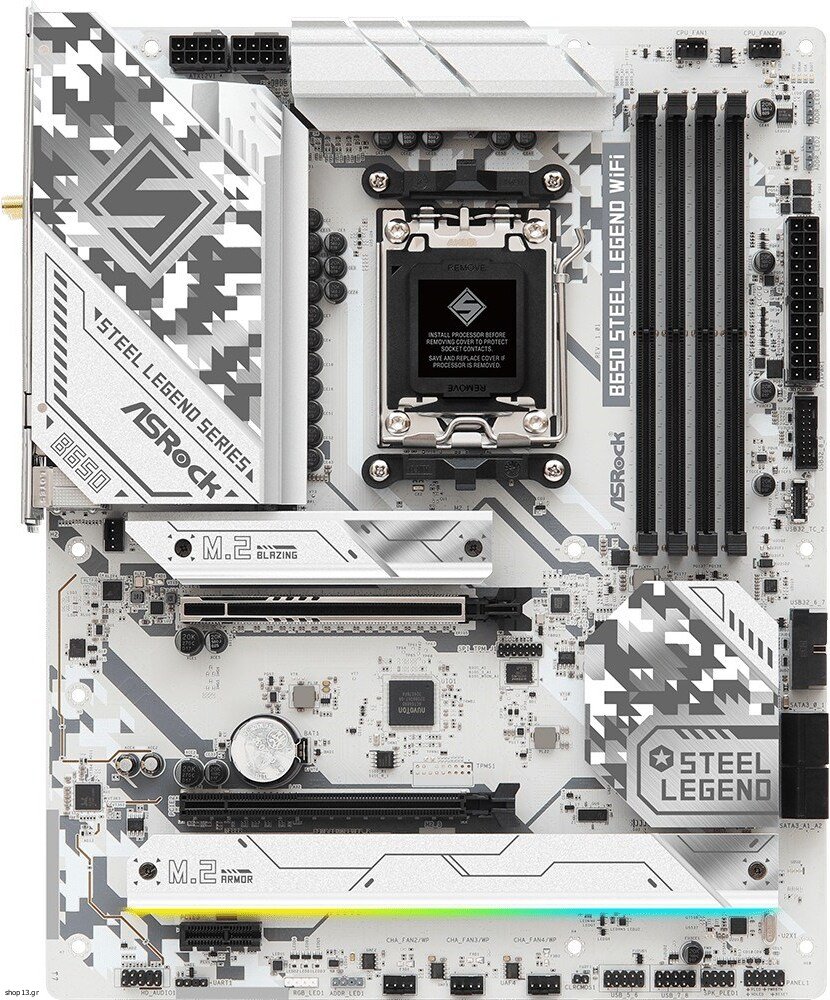

Asrock motherboard - (B650 STEEL LEGEND WIFI)

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen(TM) 7, AMD Ryzen(TM) 5, AMD Ryzen 9 7th Gen
Maximum number of SMP processors: 1
Processor socket: Socket AM5

Features
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset: AMD B650
Audio chip: Realtek ALC4082
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory
Supported memory clock speeds: 7200
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
LAN controller: Dragon RTL8125BG
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11g, 802.11b
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Bluetooth version: 5.2
Ethernet LAN: Yes

Internal I/O
Thunderbolt headers: 1
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
TPM connector: Yes
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
RAID levels: 0, 10, 1
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
DisplayPorts quantity: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Number of antenna connectors: 2
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1

Safety warning
Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.


Warranty: warranty 36 months
