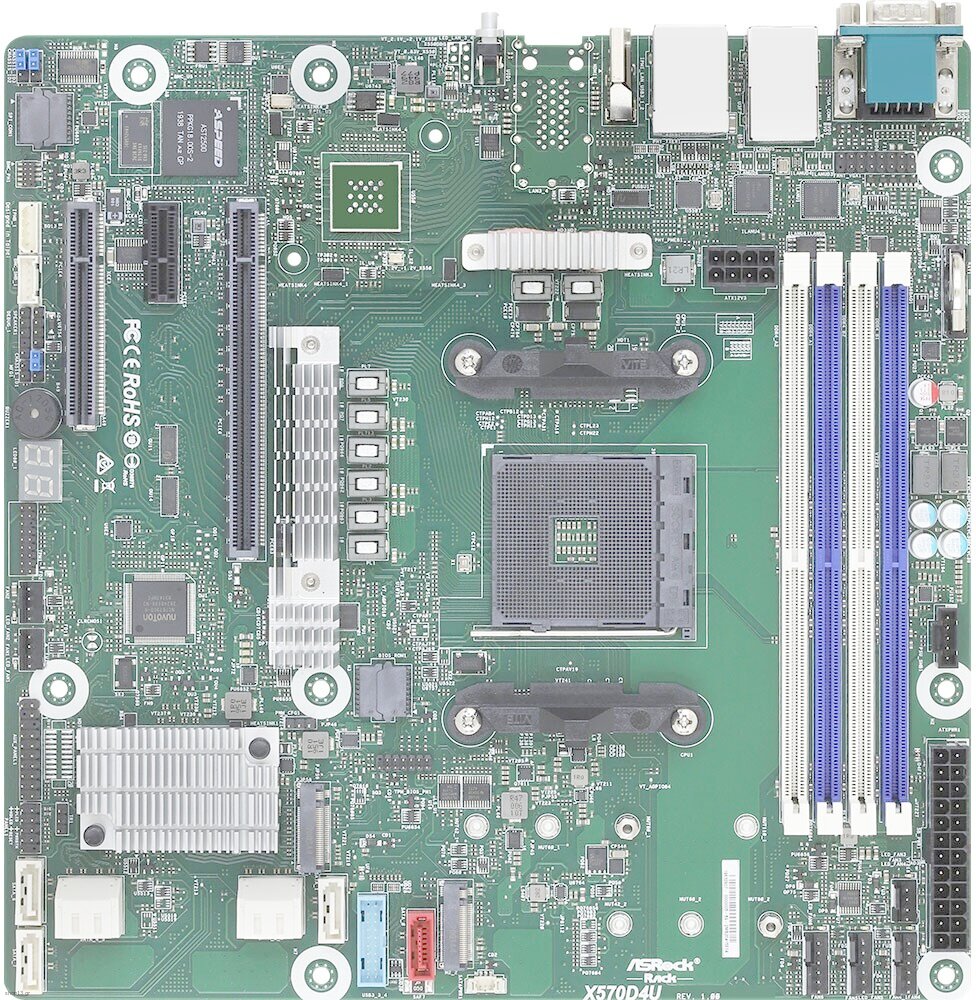

Asrock Motherboard Amd X570 Socket AM4 Micro Atx - (X570D4U)

Processor
Supported processor sockets: Socket AM4
Processor socket: Socket AM4

Graphics
Graphics card family: ASPEED
Graphics card: AST2500

Features
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD X570

Memory
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Memory voltage: 1.2 V
ECC ?ompatibility: Non-ECC
Supported memory clock speeds: 3200 MHz, 2666
Maximum internal memory: 32 GB
Unbuffered memory: Yes

Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210, Realtek RTL8211E

Internal I/O
Chassis intrusion connector: Yes
12V power connector: Yes
ATX Power connector (24-pin): Yes
TPM connector: Yes
Number of SATA III connectors: 12
Number of SATA connectors: 12

BIOS
BIOS type: UEFI AMI
ACPI version: 2.0

Storage controllers
RAID levels: 1, 0, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 3

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x8 slots: 1
PCI Express x1 slots: 1

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: The motherboard may contain electronic components hazardous to health - avoid direct contact., Do not open or disassemble the motherboard., Use only in a dry and well-ventilated area.


Warranty: warranty 36 months
