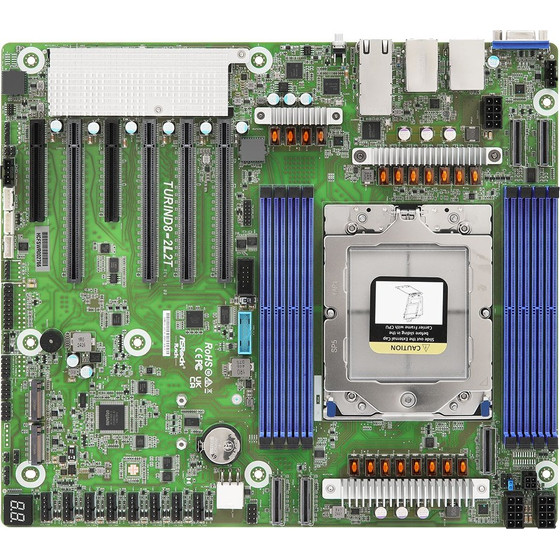

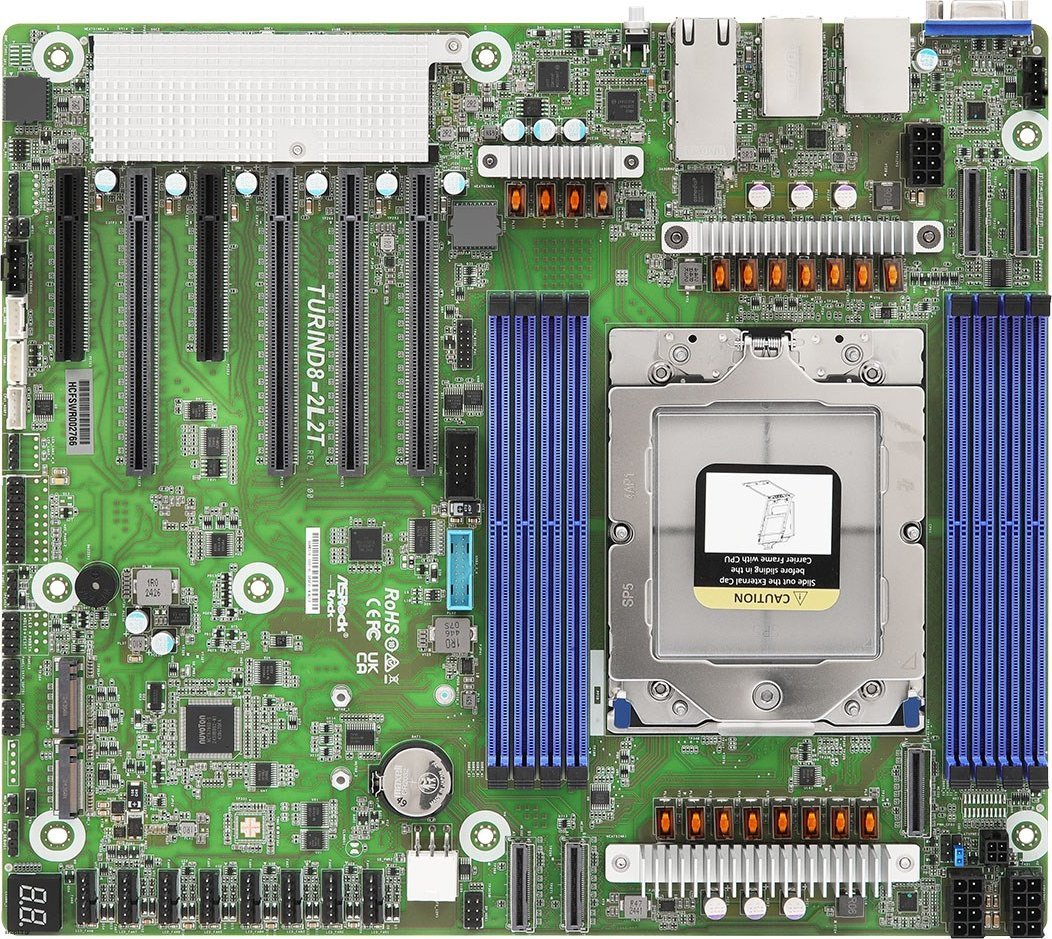

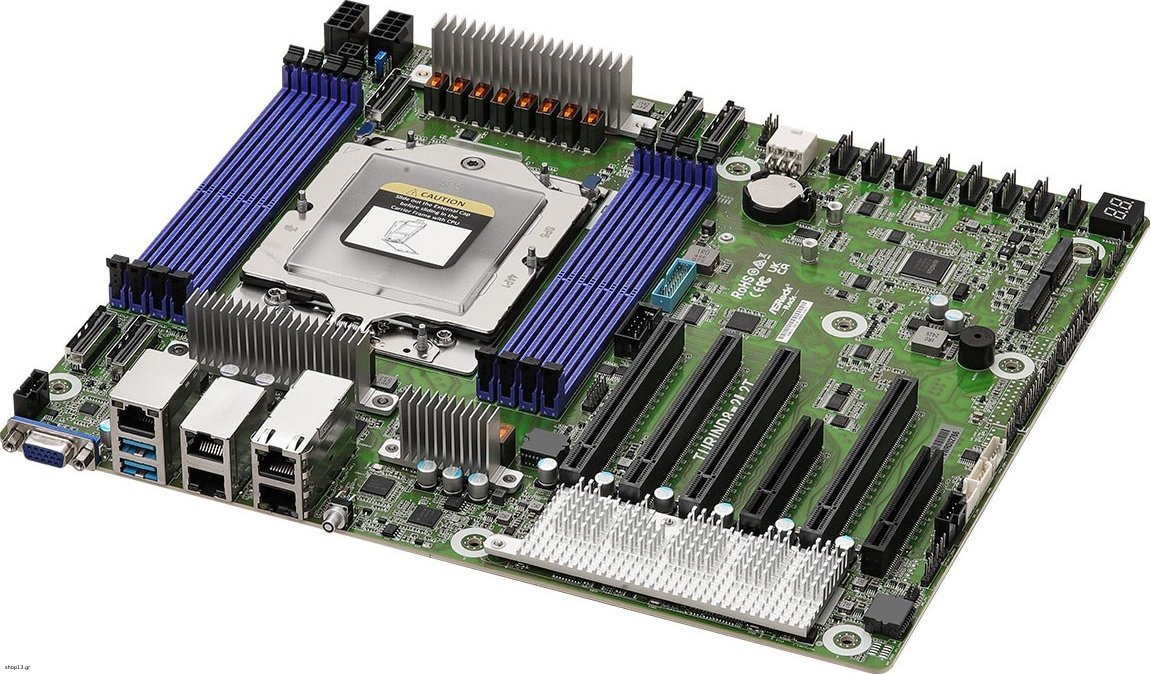

Asrock Motherboard Amd Soc Socket SP5 Ceb - (TURIND8-2L2T)

Processor
Compatible processor series: AMD EPYC 9004
Processor manufacturer: AMD
Processor socket: Socket SP5

Graphics
Graphics card: AST2600
Graphics card family: ASPEED
On-board graphics card: Yes

Features
Component for: Server
Motherboard chipset: AMD SoC
Motherboard form factor: CEB
Motherboard chipset family: AMD

Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 8
Memory voltage: 1.1 V
Maximum internal memory: 256 GB
Supported memory clock speeds: 6400

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions
Width: 304.8 mm
Depth: 266.7 mm

Network
Ethernet interface type: Gigabit Ethernet, 10 Gigabit Ethernet
LAN controller: Intel X710-AM2, Intel I210
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
TPM connector: Yes
Number of SATA III connectors: 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of COM connectors: 1

BIOS
System Management BIOS (SMBIOS) version: 3.5
BIOS memory size: 256 Mbit
ACPI version: 6.4
BIOS type: UEFI AMI

Storage controllers
Supported storage drive interfaces: SATA III

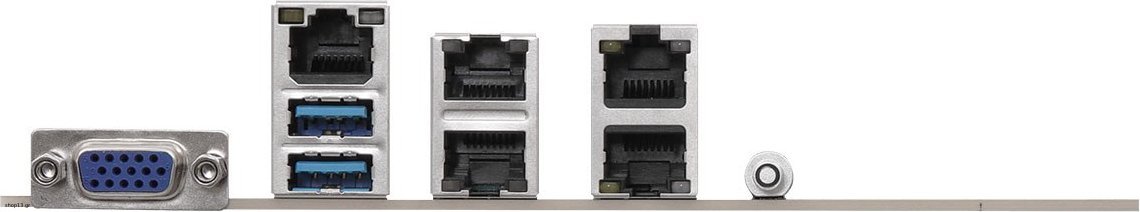

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
IPMI LAN (RJ-45) port: Yes
Ethernet LAN (RJ-45) ports: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
PCI Express x8 (Gen 5.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 4


Warranty: warranty 36 months
