Processor
Compatible processor series: AMD Ryzen(TM) 5, AMD Ryzen(TM) 3
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor socket: Socket AM5
Graphics
On-board graphics card model: Aspeed AST2600
Features
Motherboard chipset family: AMD
PC health monitoring: Fan, CPU, Voltage
Motherboard form factor: micro ATX
Motherboard chipset: AMD B650 Express
Component for: Server
Memory
ECC ?ompatibility: ECC & Non-ECC
Supported memory clock speed (max): 5200 MHz
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory voltage: 1.1
Supported memory clock speeds: 5200, 3600
Maximum internal memory: 32 GB
Number of memory slots: 4
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
Depth: 243.8 mm
Width: 243.8 mm
Network
Wi-Fi: No
Ethernet LAN: Yes
Internal I/O
TPM connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
Number of SATA III connectors: 4
BIOS
BIOS type: UEFI AMI
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5
BIOS memory size: 256 Mbit
Storage controllers
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 10, 1

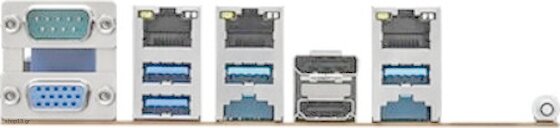

Rear panel I/O ports
Serial ports quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
IPMI LAN (RJ-45) port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
VGA (D-Sub) ports quantity: 1
Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
Safety warning
Warnings: Use only in a dry and well-ventilated area., Do not open or disassemble the motherboard., The motherboard may contain electronic components hazardous to health - avoid direct contact.
Warranty: warranty 36 months
