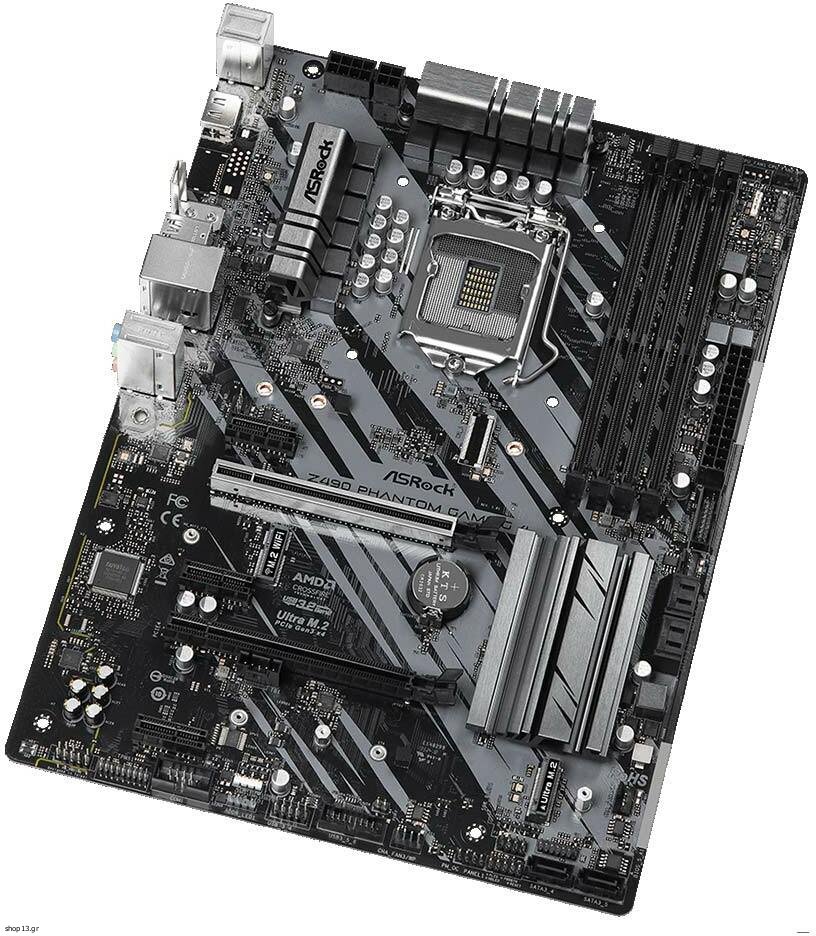

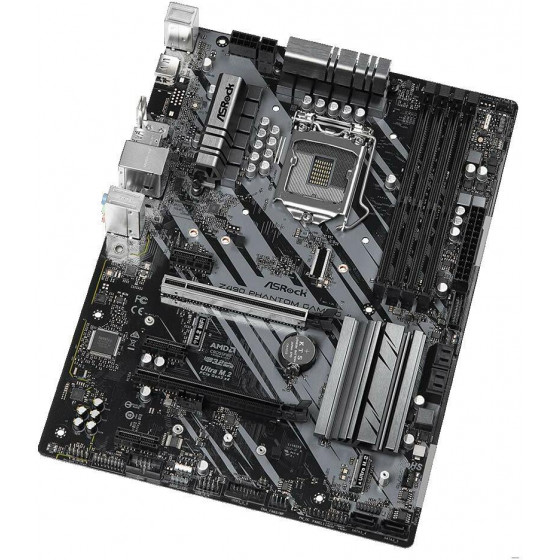

ASROCK Μητρική Z490 Phantom Gaming 4 4x DDR4 s1200 USB 3.2 ATX - (Z490-PG4)
[Κωδικός : 211898]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
ASROCK Μητρική Z490 Phantom Gaming 4, 4x DDR4, s1200, USB 3.2, ATXΗ Z490 Phantom Gaming 4 της Asrock είναι μια κορυφαία μητρική κάρτα, ιδανική για χρήση σε gaming PC κορυφαίων επιδόσεων! Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Διακρίνεται για το εντυπωσιακό της design και το αποδοτικό της σύστημα ψύξης. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1200 και βασίζεται στο chipset Z490 της Intel.
Διαθέτει έξοδο γραφικών HDMI 2.0-Supports 10th Gen IntelR CoreT Processors (Socket 1200)
-Dual Channel DDR4 Memory Technology
-2x PCIe 3.0 x16, 3x PCIe 3.0 x1
-Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
-7.1 CH HD Audio with Content Protection, Nahimic Audio
-6x SATA3, 1x Ultra M.2 (PCIe Gen3 x4)
-1x USB 2.0 Headers (Support 4xUSB 2.0 ports) (Supports ESD Protection)
-2x USB 3.2 Gen1 Headers (Support 4xUSB 3.2 Gen1 ports) (Supports ESD Protection)Τεχνικά Χαρακτηριστικά
CPU: Supports 10th Gen IntelR CoreT Processors (Socket 1200)
Chipset: Intel Z490
Memory: Dual Channel DDR4 Memory Technology, 4x DDR4 DIMM Slots
Output options: HDMI up to 4K x 2K (4096x2160) @ 30Hz
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
LAN: Gigabit LAN 10/100/1000 Mb/s, Giga PHY IntelR I219V, IntelR LAN
Slots: 2x PCI Express 3.0 x16 Slot, 3x PCI Express 3.0 x1 Slots, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage: 6x SATA3 6.0 Gb/s Connectors, 1x Ultra M.2 Socket
Connector:
1x COM Port Header
1x SPI TPM Header
1x Power LED and Speaker Header
2x RGB LED Headers
2x Addressable LED Headers
1x CPU Fan Connector (4-pin)
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x 4 pin 12V Power Connector
1x Front Panel Audio Connector
1x ThunderboltT AIC Connector (5-pin) (Supports ASRock ThunderboltT 3 AIC R2.0 Card only)
1x USB 2.0 Header (Supports 2xUSB 2.0 ports) (Supports ESD Protection)
2x USB 3.2 Gen1 Headers (Support 4xUSB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O
2x Antenna Mounting Points
1x PS/2 Mouse/Keyboard Port
1x HDMI Port
1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
2x USB 3.2 Gen1 Ports (Supports ESD Protection)
2x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor: ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cmΠεριεχόμενα συσκευασίας
Z490-PG4
Quick Installation Guide, Support CD, I/O Shield
2x SATA Data Cables
2x Screw for M.2 Socket
Κατασκευαστής:ASROCK
Εγγύηση:24 μήνες
Διαστάσεις Συσκευασίας:24 x 6 x 26.5 cm
Βάρος Συσκευασίας:1.315 Kg
Τύπος συσκευασίας:Retail box
Διαθέτει έξοδο γραφικών HDMI 2.0-Supports 10th Gen IntelR CoreT Processors (Socket 1200)
-Dual Channel DDR4 Memory Technology
-2x PCIe 3.0 x16, 3x PCIe 3.0 x1
-Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
-7.1 CH HD Audio with Content Protection, Nahimic Audio
-6x SATA3, 1x Ultra M.2 (PCIe Gen3 x4)
-1x USB 2.0 Headers (Support 4xUSB 2.0 ports) (Supports ESD Protection)
-2x USB 3.2 Gen1 Headers (Support 4xUSB 3.2 Gen1 ports) (Supports ESD Protection)Τεχνικά Χαρακτηριστικά
CPU: Supports 10th Gen IntelR CoreT Processors (Socket 1200)
Chipset: Intel Z490
Memory: Dual Channel DDR4 Memory Technology, 4x DDR4 DIMM Slots
Output options: HDMI up to 4K x 2K (4096x2160) @ 30Hz
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
LAN: Gigabit LAN 10/100/1000 Mb/s, Giga PHY IntelR I219V, IntelR LAN
Slots: 2x PCI Express 3.0 x16 Slot, 3x PCI Express 3.0 x1 Slots, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage: 6x SATA3 6.0 Gb/s Connectors, 1x Ultra M.2 Socket
Connector:
1x COM Port Header
1x SPI TPM Header
1x Power LED and Speaker Header
2x RGB LED Headers
2x Addressable LED Headers
1x CPU Fan Connector (4-pin)
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x 4 pin 12V Power Connector
1x Front Panel Audio Connector
1x ThunderboltT AIC Connector (5-pin) (Supports ASRock ThunderboltT 3 AIC R2.0 Card only)
1x USB 2.0 Header (Supports 2xUSB 2.0 ports) (Supports ESD Protection)
2x USB 3.2 Gen1 Headers (Support 4xUSB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O
2x Antenna Mounting Points
1x PS/2 Mouse/Keyboard Port
1x HDMI Port
1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
2x USB 3.2 Gen1 Ports (Supports ESD Protection)
2x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor: ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cmΠεριεχόμενα συσκευασίας
Z490-PG4
Quick Installation Guide, Support CD, I/O Shield
2x SATA Data Cables
2x Screw for M.2 Socket
Κατασκευαστής:ASROCK
Εγγύηση:24 μήνες
Διαστάσεις Συσκευασίας:24 x 6 x 26.5 cm
Βάρος Συσκευασίας:1.315 Kg
Τύπος συσκευασίας:Retail box
