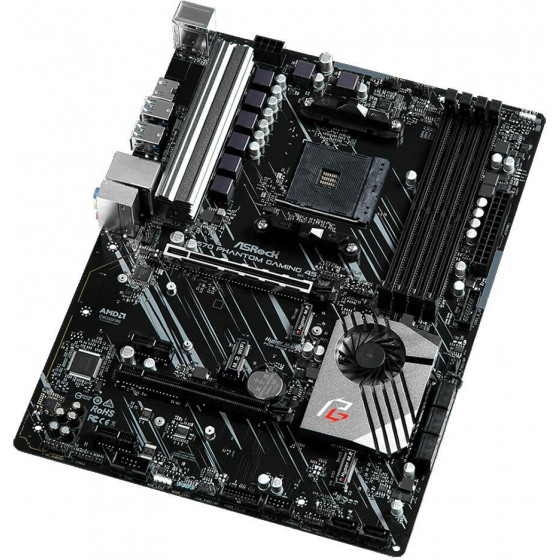

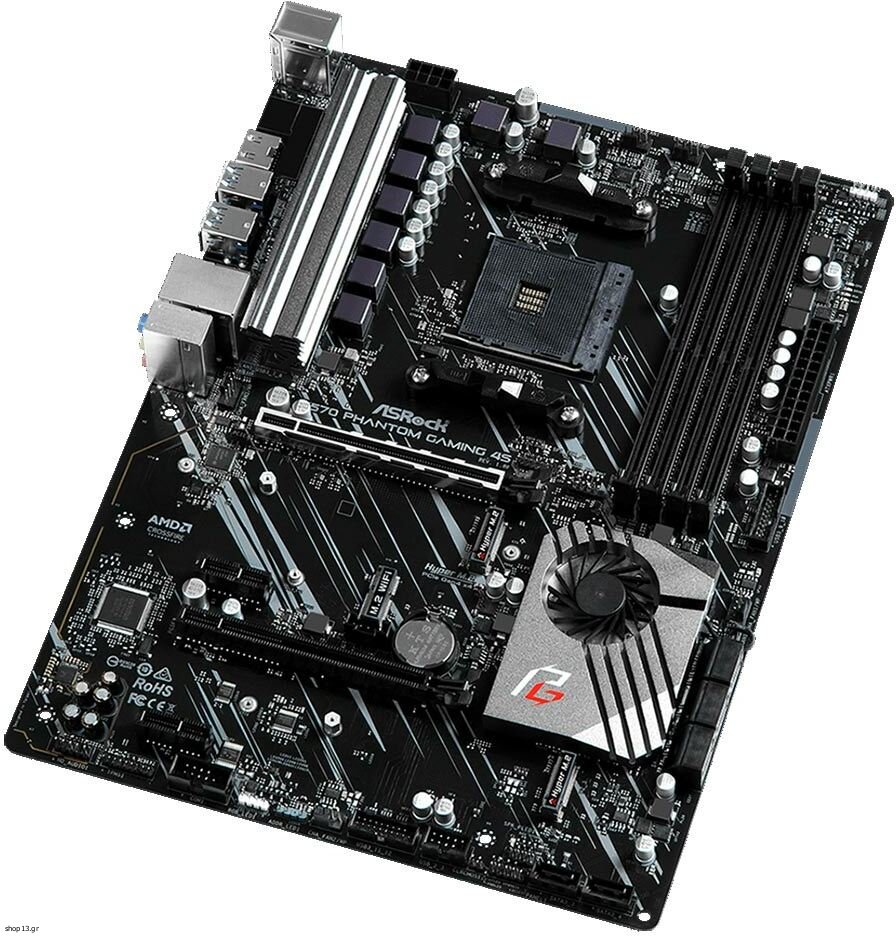

ASROCK Μητρική X570 Phantom Gaming 4S 4x DDR4 AM4 USB 3.2 ATX - (X570-PG4S)
[Κωδικός : 211897]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
ASROCK Μητρική X570 Phantom Gaming 4S, 4x DDR4, AM4, USB 3.2, ATX Η X570 Phantom Gaming 4S της Asrock είναι μια κορυφαία μητρική κάρτα, ιδανική για χρήση σε gaming PC κορυφαίων επιδόσεων! Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Διακρίνεται για το εντυπωσιακό της design και το αποδοτικό της σύστημα ψύξης. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset X570 της AMD.
Διαθέτει έξοδο γραφικών HDMI 2.0-Supports AMD AM4 Socket Ryzen 2000, 3000 and 5000 Series Desktop Processors
-Supports 4x DDR4 DIMM Slots
-2x PCIe 4.0 x16, 1x PCIe 3.0 x1
-Supports AMD Quad CrossFireXT and CrossFireXT
-Graphics Output: Integrated AMD RadeonT Vega Series Graphics in Ryzen Series APU, HDMI
-7.1 CH HD Audio (Realtek ALC1200 Audio Codec)
-8x SATA3, 1x Hyper M.2 (PCIe Gen4x4), 1x Hyper M.2 SATA3
-2x USB 3.2 Gen1 Headers
-1x USB 2.0 HeadersΤεχνικά Χαρακτηριστικά
CPU: Supports AMD AM4 Socket Ryzen 2000, 3000 and 5000 Series Desktop Processors
Chipset: AMD X570
Memory: Dual Channel DDR4 Memory Technology, 4x DDR4 DIMM Slots
Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, DirectX 12, Pixel Shader 5.0
Audio: 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Supports Surge Protection
LAN: PCIEx1 Gigabit LAN 10/100/1000 Mb/s, Giga PHY IntelR I211AT
Slots:AMD Ryzen series CPUs (Vermeer, Matisse), 1x PCI Express 4.0 x16 Slot (x16 (PCIE1), AMD Ryzen series CPUs (Renoir, Pinnacle Ridge), 1x PCI Express 3.0 x16 Slot (x16 (PCIE1), AMD Ryzen series CPUs (Picasso), 1x PCI Express 3.0 x16 Slot (x8 (PCIE1), AMD X570 Chipset 1x PCI Express 4.0 x16 Slot (x4 (PCIE3)) 3.0 x1 Slot, 2x PCI Express 4.0 x1 Slots, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT module, 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Supports AMD Quad CrossFireXT and CrossFireXT
Storage: 8x SATA3 6.0 Gb/s Connectors, 1x Hyper M.2 Socket (M2 1), 1x Hyper M.2 Socket (M2 3)
Connector:
1x COM Port Header
1x Power LED and Speaker Header
2x RGB LED Headers
1x Addressable LED Header
1x CPU Fan Connector (4-pin)
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x AMD LED Fan USB Header
1x ThunderboltT AIC Connector (5-pin) (Supports ASRock ThunderboltT 3 AIC Card R2.0 only)
1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1x SPI TPM Header
Rear Panel I/O
1x PS/2 Mouse/Keyboard Port
1x HDMI Port
8x USB 3.2 Gen1 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor: ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cmΠεριεχόμενα συσκευασίας
B550M/ac
Quick Installation Guide, Support CD, I/O Shield
2x SATA Data Cables
3x Screw for M.2 Socket
Κατασκευαστής:ASROCK
Εγγύηση:24 μήνες
Διαστάσεις Συσκευασίας:34.5 x 7.5 x 28 cm
Βάρος Συσκευασίας:1.507 Kg
Τύπος συσκευασίας:Retail box
Διαθέτει έξοδο γραφικών HDMI 2.0-Supports AMD AM4 Socket Ryzen 2000, 3000 and 5000 Series Desktop Processors
-Supports 4x DDR4 DIMM Slots
-2x PCIe 4.0 x16, 1x PCIe 3.0 x1
-Supports AMD Quad CrossFireXT and CrossFireXT
-Graphics Output: Integrated AMD RadeonT Vega Series Graphics in Ryzen Series APU, HDMI
-7.1 CH HD Audio (Realtek ALC1200 Audio Codec)
-8x SATA3, 1x Hyper M.2 (PCIe Gen4x4), 1x Hyper M.2 SATA3
-2x USB 3.2 Gen1 Headers
-1x USB 2.0 HeadersΤεχνικά Χαρακτηριστικά
CPU: Supports AMD AM4 Socket Ryzen 2000, 3000 and 5000 Series Desktop Processors
Chipset: AMD X570
Memory: Dual Channel DDR4 Memory Technology, 4x DDR4 DIMM Slots
Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, DirectX 12, Pixel Shader 5.0
Audio: 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Supports Surge Protection
LAN: PCIEx1 Gigabit LAN 10/100/1000 Mb/s, Giga PHY IntelR I211AT
Slots:AMD Ryzen series CPUs (Vermeer, Matisse), 1x PCI Express 4.0 x16 Slot (x16 (PCIE1), AMD Ryzen series CPUs (Renoir, Pinnacle Ridge), 1x PCI Express 3.0 x16 Slot (x16 (PCIE1), AMD Ryzen series CPUs (Picasso), 1x PCI Express 3.0 x16 Slot (x8 (PCIE1), AMD X570 Chipset 1x PCI Express 4.0 x16 Slot (x4 (PCIE3)) 3.0 x1 Slot, 2x PCI Express 4.0 x1 Slots, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT module, 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Supports AMD Quad CrossFireXT and CrossFireXT
Storage: 8x SATA3 6.0 Gb/s Connectors, 1x Hyper M.2 Socket (M2 1), 1x Hyper M.2 Socket (M2 3)
Connector:
1x COM Port Header
1x Power LED and Speaker Header
2x RGB LED Headers
1x Addressable LED Header
1x CPU Fan Connector (4-pin)
1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x AMD LED Fan USB Header
1x ThunderboltT AIC Connector (5-pin) (Supports ASRock ThunderboltT 3 AIC Card R2.0 only)
1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1x SPI TPM Header
Rear Panel I/O
1x PS/2 Mouse/Keyboard Port
1x HDMI Port
8x USB 3.2 Gen1 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor: ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cmΠεριεχόμενα συσκευασίας
B550M/ac
Quick Installation Guide, Support CD, I/O Shield
2x SATA Data Cables
3x Screw for M.2 Socket
Κατασκευαστής:ASROCK
Εγγύηση:24 μήνες
Διαστάσεις Συσκευασίας:34.5 x 7.5 x 28 cm
Βάρος Συσκευασίας:1.507 Kg
Τύπος συσκευασίας:Retail box
Χαρακτηριστικά
Μοντέλο
ASROCK Μητρική X570 Phantom Gaming 4S, 4x DDR4, AM4, USB 3.2, ATX
