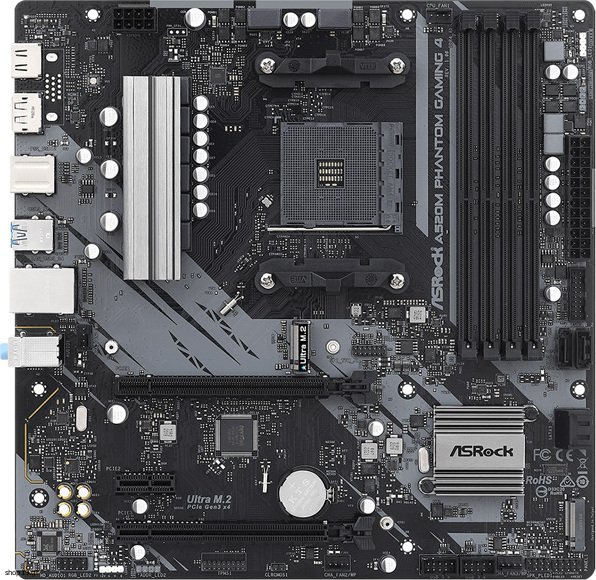

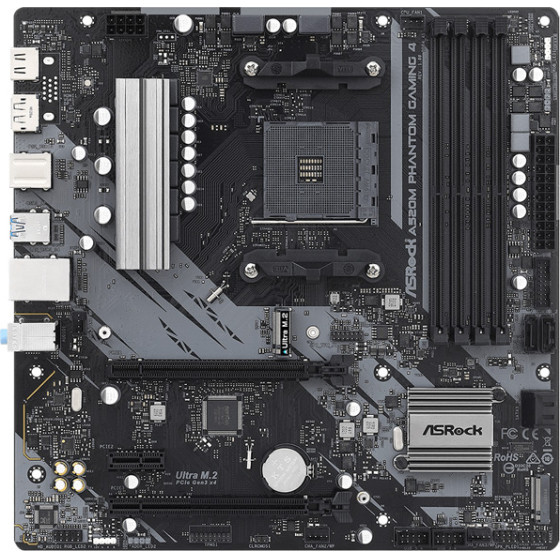

Asrock μητρική A520M Phantom Gaming 4, 4x DDR4, AM4, Usb 3.2, Matx - (A520M-PG4)
[Κωδικός : 404664]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
ASROCK μητρική A520M Phantom Gaming 4, 4x DDR4, AM4, USB 3.2, mATX
Η A520M Phantom Gaming 4 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση σε gaming PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset A520 της AMD.
Διαθέτει δυο εξόδους γραφικών: HDMI και DisplayPort.
-Supports AMD AM4 Socket Ryzen(TM) 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
-8 Power Phase Design with Digi Power
-Supports DDR4 4733+ (OC)
-2x PCIe 3.0 x16, 1x PCIe 3.0 x1
-Graphics Output Options: HDMI, DisplayPort
-7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
-4x SATA3, 1x Ultra M.2 (PCIe Gen3 x4), 1x M.2 (PCIe Gen3 x2 & SATA3)
-6x USB 3.2 Gen1 (2 Front, 4 Rear)
-6x USB 2.0 (4 Front, 2 Rear)
-Realtek Gigabit LAN
Τεχνικά χαρακτηριστικά
CPU: AMD AM4 Socket Ryzen(TM) 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors / Digi Power design / 8 Power Phase design
Chipset: AMD A520
Memory: 4x DDR4 DIMM Slots / Dual Channel DDR4 Memory Technology / Supports Extreme Memory Profile (XMP) memory modules / 15μ Gold Contact in DIMM Slots
Max. capacity of system memory: 128GB
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment
Graphics: HDMI 2.1, DisplayPort 1.4
Audio: 7.1 CH HD Audio (Realtek 887/897 Audio Codec) / Supports Surge Protection
LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Slots: 2x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2 mode) / 1x PCI Express 3.0 x1 Slot
Storage: 4x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug / 1x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) / 1x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
Form Factor: Micro ATX Form Factor: 24.4 cm x 24.4 cm
OS: Microsoft Windows 10 64-bit / 11 64-bit
Connector:
-1x SPI TPM Header
-1x Power LED and Speaker Header
-2x RGB LED Headers
-2x Addressable LED Headers
-1x CPU Fan Connector (4-pin)
-3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
-1x 24 pin ATX Power Connector
-1x 8 pin 12V Power Connector
-1x Front Panel Audio Connector
-2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O:
-1x PS/2 Mouse/Keyboard Port
-1x HDMI Port
-1x DisplayPort 1.4
-4x USB 3.2 Gen1 Ports (Supports ESD Protection)
-2x USB 2.0 Ports (Supports ESD Protection)
-1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-HD Audio Jacks: Line in / Front Speaker / Microphone
Περιεχόμενα συσκευασίας
Μητρική A520M Phantom Gaming 4
2x SATA Data Cables
2x Screws for M.2 Sockets
I/O Shield
Support CD
Quick Installation Guide
Brand: ASROCK
Συσκευασία: Retail box
Socket: AM4
Chipset: A520
Η A520M Phantom Gaming 4 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση σε gaming PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset A520 της AMD.
Διαθέτει δυο εξόδους γραφικών: HDMI και DisplayPort.
-Supports AMD AM4 Socket Ryzen(TM) 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
-8 Power Phase Design with Digi Power
-Supports DDR4 4733+ (OC)
-2x PCIe 3.0 x16, 1x PCIe 3.0 x1
-Graphics Output Options: HDMI, DisplayPort
-7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
-4x SATA3, 1x Ultra M.2 (PCIe Gen3 x4), 1x M.2 (PCIe Gen3 x2 & SATA3)
-6x USB 3.2 Gen1 (2 Front, 4 Rear)
-6x USB 2.0 (4 Front, 2 Rear)
-Realtek Gigabit LAN
Τεχνικά χαρακτηριστικά
CPU: AMD AM4 Socket Ryzen(TM) 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors / Digi Power design / 8 Power Phase design
Chipset: AMD A520
Memory: 4x DDR4 DIMM Slots / Dual Channel DDR4 Memory Technology / Supports Extreme Memory Profile (XMP) memory modules / 15μ Gold Contact in DIMM Slots
Max. capacity of system memory: 128GB
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment
Graphics: HDMI 2.1, DisplayPort 1.4
Audio: 7.1 CH HD Audio (Realtek 887/897 Audio Codec) / Supports Surge Protection
LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Slots: 2x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2 mode) / 1x PCI Express 3.0 x1 Slot
Storage: 4x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug / 1x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) / 1x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
Form Factor: Micro ATX Form Factor: 24.4 cm x 24.4 cm
OS: Microsoft Windows 10 64-bit / 11 64-bit
Connector:
-1x SPI TPM Header
-1x Power LED and Speaker Header
-2x RGB LED Headers
-2x Addressable LED Headers
-1x CPU Fan Connector (4-pin)
-3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
-1x 24 pin ATX Power Connector
-1x 8 pin 12V Power Connector
-1x Front Panel Audio Connector
-2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O:
-1x PS/2 Mouse/Keyboard Port
-1x HDMI Port
-1x DisplayPort 1.4
-4x USB 3.2 Gen1 Ports (Supports ESD Protection)
-2x USB 2.0 Ports (Supports ESD Protection)
-1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-HD Audio Jacks: Line in / Front Speaker / Microphone
Περιεχόμενα συσκευασίας
Μητρική A520M Phantom Gaming 4
2x SATA Data Cables
2x Screws for M.2 Sockets
I/O Shield
Support CD
Quick Installation Guide
Brand: ASROCK
Συσκευασία: Retail box
Socket: AM4
Chipset: A520
