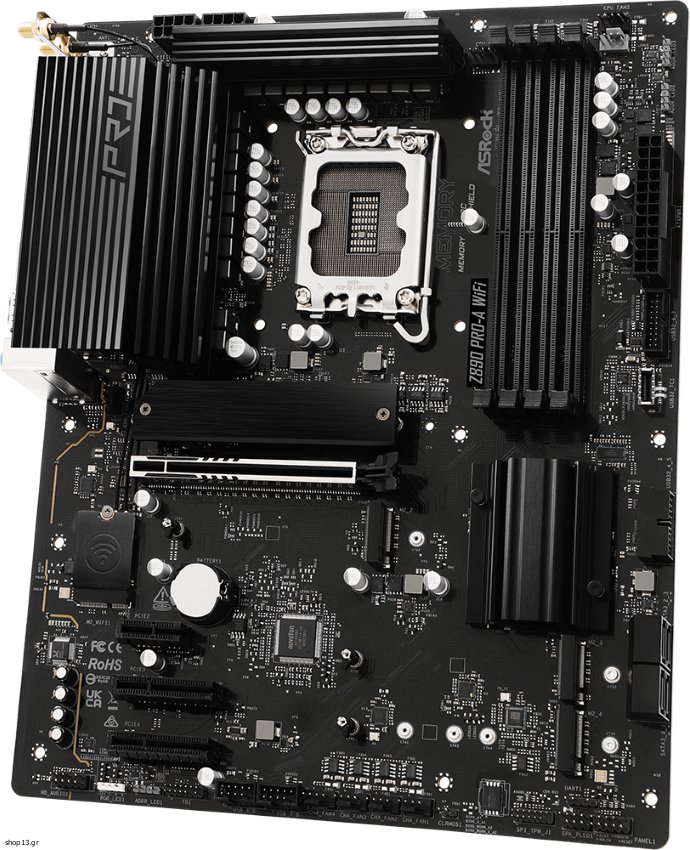

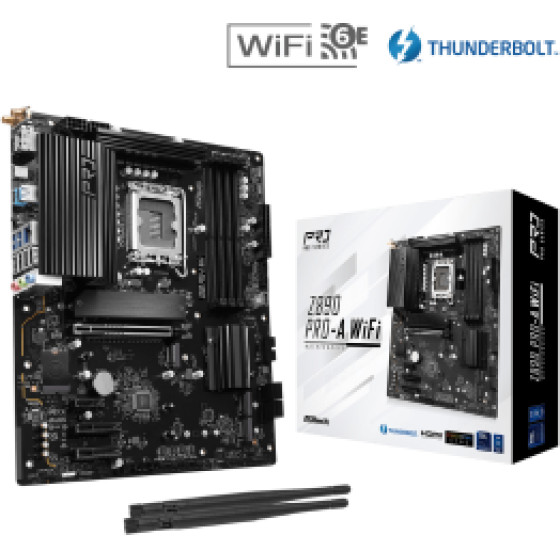

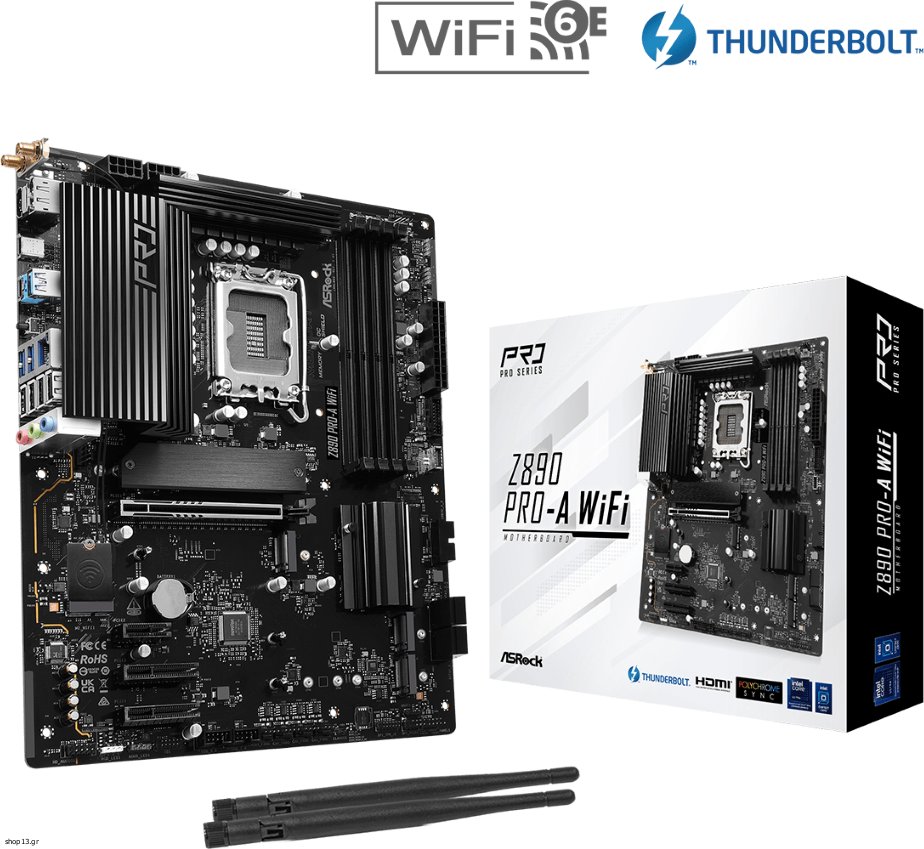

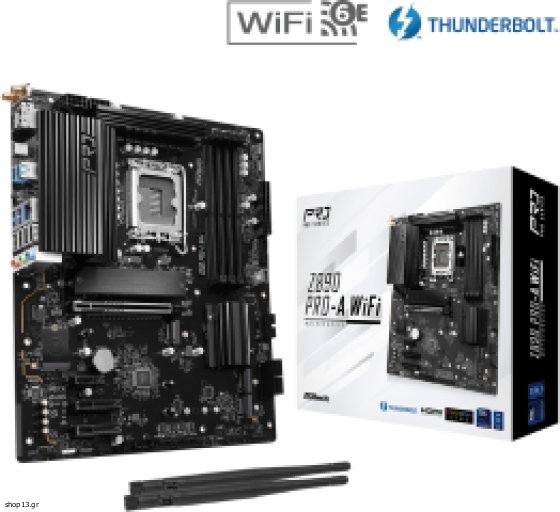

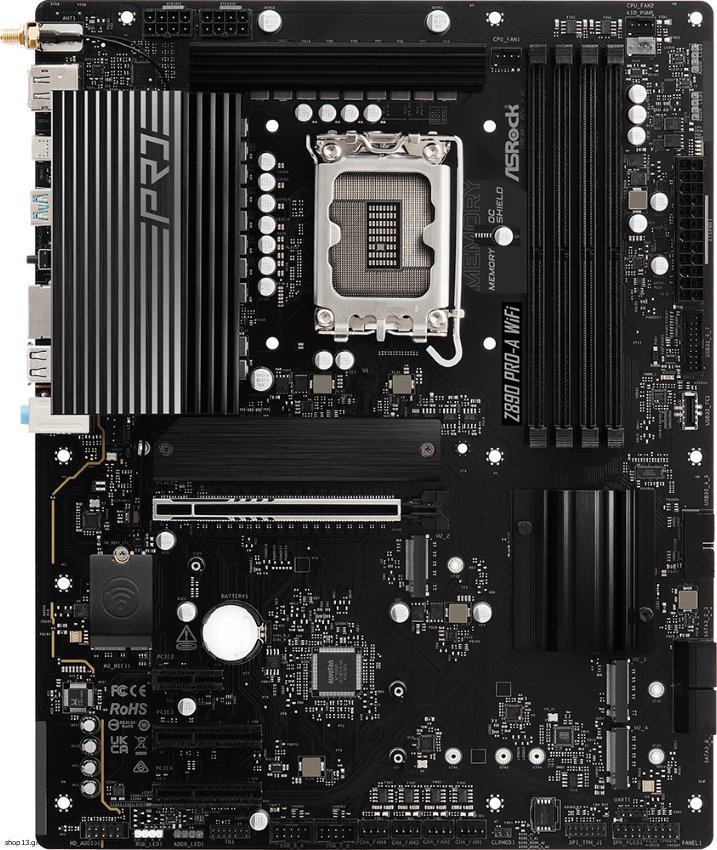

Asrock Mb Socket Intel LGA1851, Cs Intel Z890, 24 Dimm Sockets DDR5, HDMI/DP, PCI-E Gen 5.0, 2.5 LAN, ATX, 3YW. - (Z890 PRO-A WIFI)

CPU Support: INTEL Socket LGA 1851, supports Intel Core Ultra Processors (Series 2), Intel Hybrid Technology, Intel Turbo Boost Max 3.0 Technology, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT). Integrated NPU for dedicated AI acceleration.
Chipset: Intel Z890.
MB Size: ATX.
Memory Support: Dual Channel DDR5 Memory Technology. 4x DDR5 DIMM Sockets for non-ECC un-buffered DDR5 RAM up to 9066+(OC)MT/s. Max 256GB. Supports Extreme Memory Profile (XMP) 3.0x. Supports Clocked Unbuffered DIMM (CUDIMM).
VGA: Intel Xe LPG Graphics Architecture.
VGA Out:

1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz.
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz.
1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz.
Slots:

1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode.
2 x PCIe 4.0 x4 Slot (PCIE3 and PCIE4), support x4 mode.
1 x PCIe 4.0 x1 Slot (PCIE2).
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT).
Storage:

1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode.
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode.
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode.
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes.
4 x SATA3 6.0 Gb/s Connectors.
RAID:

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
LAN:

2.5 Gigabit LAN 10/100/1000/2500 Mb/s.
Dragon RTL8125BG.
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless LAN:

802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Audio: 7.1-Channel High Definition Audio (Realtek ALC897 Audio Codec).
I/O:

1 x Thunderbolt 4 Type-C (Rear).
1 x USB 3.2 Gen2x2 Type-C (Rear).
1 x USB 3.2 Gen2x2 Type-C (Front).
1 x USB 3.2 Gen2 Type-A (Rear).
6 x USB 3.2 Gen1 (2 Rear, 4 Front).
8 x USB 2.0 (4 Rear, 4 Front).
2 x Antenna Ports (Rear).
1 x HDMI Port (Rear).
1 x DisplayPort 1.4 (Rear).
1 x RJ-45 LAN Port (Rear).
1 x BIOS Flashback Button (Rear).
HD Audio Jacks: Line in/ Front Speaker/ Microphone (Rear)
Unique Features:

Superb Productivity: PCIe Gen5 (Graphics, M.2). Dual Channel DDR5. Thunderbolt 4 Type-C Port (40 Gb/s).
Rock-Solid Durability: 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT. Memory OC Shield.
Ultrafast Connectivity: 2.5G LAN, 802.11axe Wi-Fi 6E Module.
EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer.
Certification: FCC, CE, ErP/EuP.
Εγγύηση: 3 χρόνια.
