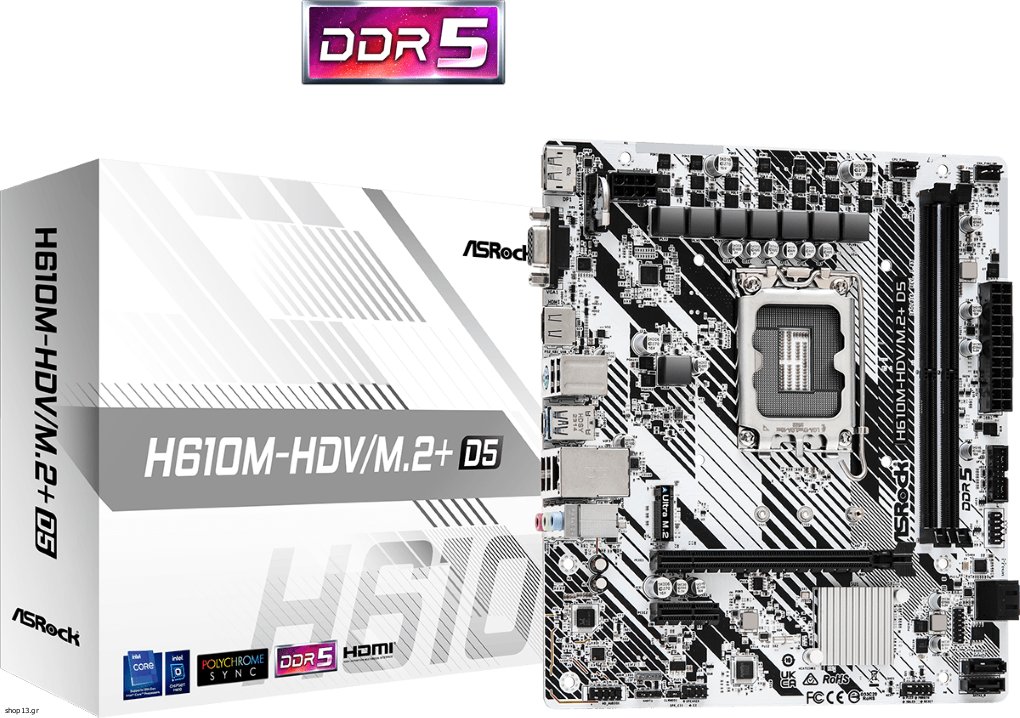

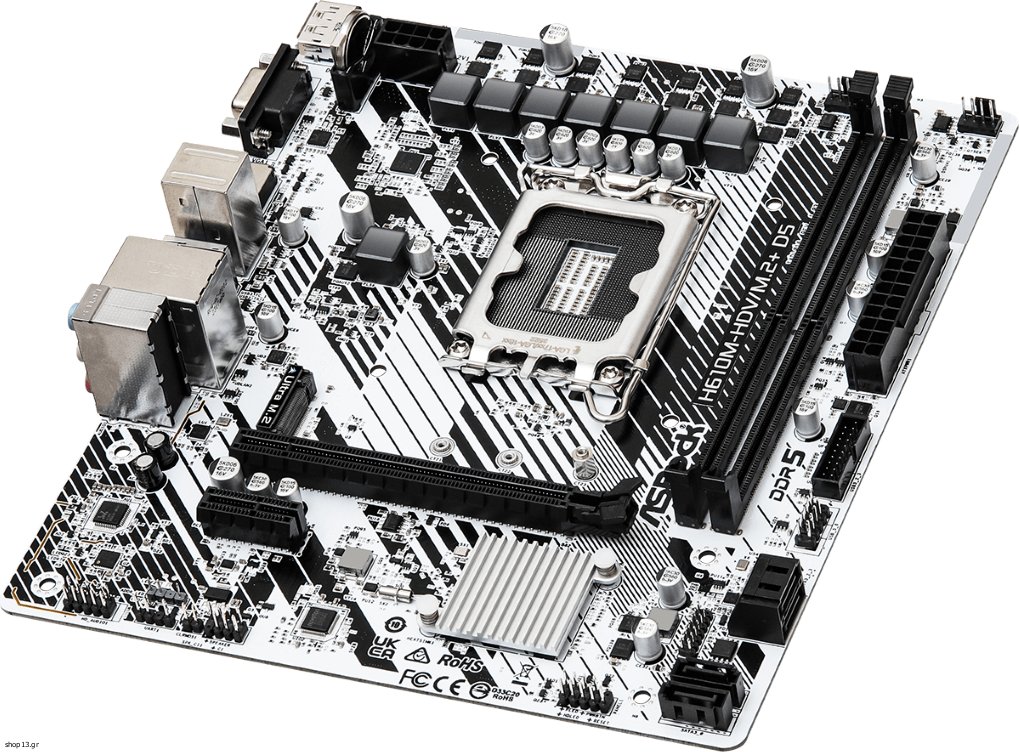

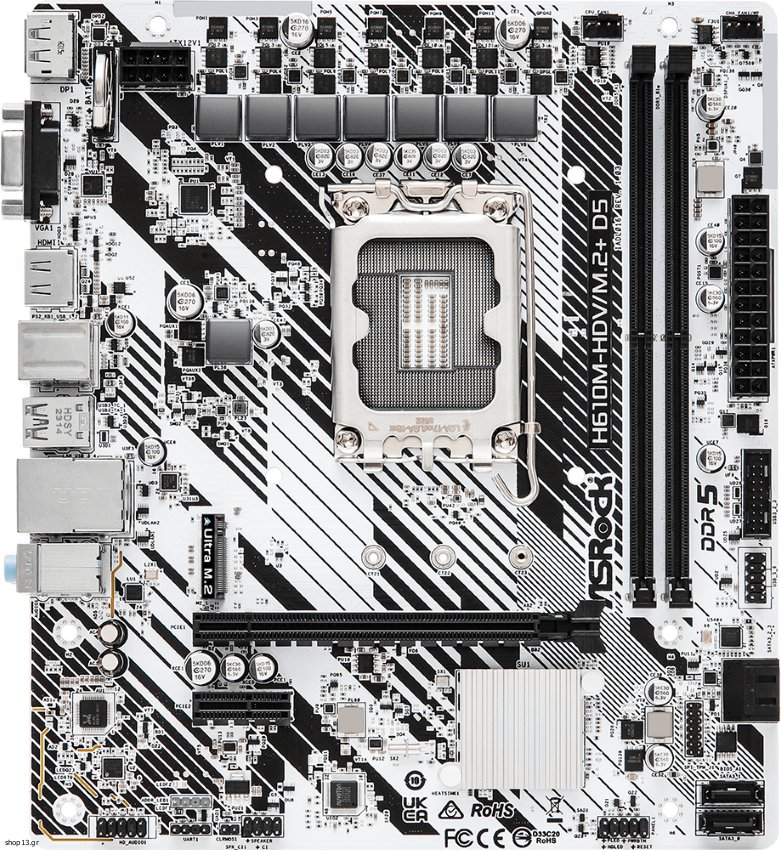

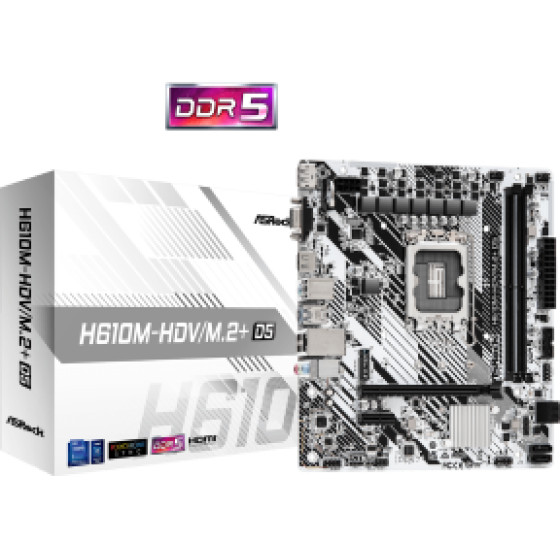

Asrock Mb Socket Intel LGA1700 14th/13th/12th Gen Intel CPU, Cs Intel H610, 2 Dimm Socket DDR5, HDMI/DP/D-SUB, PCI-E Gen 4.0, LAN, MICRO-ATX, 3YW. - (H610M-HDV/M.2+ D5)

CPU Support: INTEL Socket LGA 1700, supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Hybrid Technology, Intel Turbo Boost Max 3.0 Technology.
Chipset: Intel H610.
MB Size: mATX. (Form Factor: 22.0 cm x 19.3 cm.).
Memory Support: Dual Channel DDR5 Memory Technology. 2x DDR5 DIMM Sockets for non-ECC un-buffered DDR5 RAM up to 5600 MT/s. Max 96GB. Supports Intel XMP 3.0.
VGA: Intel Xe Graphics Architecture (Gen 12).
VGA Out:

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3. Max. resolution up to 4K 60Hz.
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3. Max. resolution up to 8K 60Hz/ 5K 120Hz.
1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz.
Slots:

1x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode.
1x PCIe 3.0 x1 Slot (PCIE2).
Storage:

1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/ 2260/ 2280 PCIe Gen3x4 (32 Gb/s) mode.
4 x SATA3 6.0 Gb/s Connectors.
LAN: Realtek 8111H Gigabit LAN 10/ 100/ 1000 Mb/s.
Audio: Realtek ALC897 Audio Codec 7.1-Channel High Definition Audio.
I/O:

1 x USB 3.2 Gen1 Type-C (Rear).
3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front).
6 x USB 2.0 (4 Rear, 2 Front).
1 x PS/2 Mouse/Keyboard Port (Rear).
1 x D-Sub Port (Rear).
1 x HDMI Port (Rear).
1 x DisplayPort 1.4 (Rear).
1 x RJ-45 LAN Port (Rear).
HD Audio Jacks: Line in/ Front Speaker/ Microphone (Rear).
OS: Microsoft Windows 10 64-bit/ 11 64-bit.
Unique Features:

Superb Productivity: Dual Channel DDR5.
Rock-Solid Durability: 6+1 Power Phase.
EZ Update: ASRock Auto Driver Installer.
Certification: FCC, CE, ErP/EuP.
Εγγύηση: 3 χρόνια.
