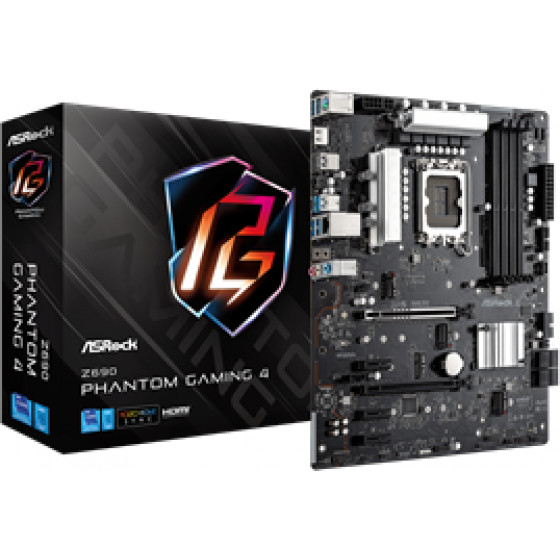

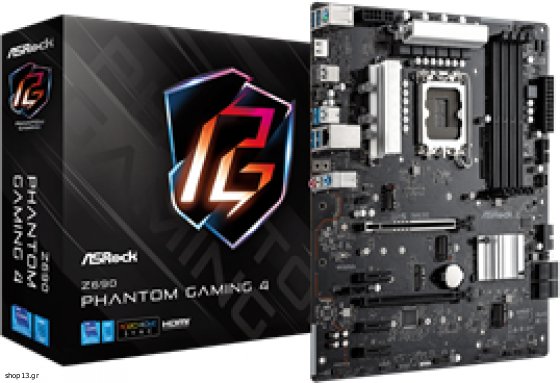

Asrock Mb Socket Intel LGA1700 12th GEN, Cs Intel Z690, 4 Dimm Sockets DDR4, HDMI, Lan GIGABIT, ATX, 2YW. - (Z690 Phantom Gaming 4)

CPU Support: Socket Intel LGA1700 for 12th Generation Intel CPU Core
Chipset: Intel Z690
MB Size: ATX
Memory Support:4 DIMM DDR4 Sockets for ECC and non-ECC un-buffered DDR4 RAM up to 5000+MHz (OC).Max 128GB. Dual Channel architecture. Support Intel XMP
VGA: Intel HD Graphics
VGA Out: 1x HDMI v2.1
Slots: 2x PCI-E (x16) (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3), 3x PCI-E (x1) v3.0, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Storage: 4x SATA3 6Gbps ports supports RAID 0/1/5/10, 1x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 , 1x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s), 1x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes. All M.2 NVMe storage devices, supprots RAID 0/1/5
NIC: Gigabit LAN 10/100/1000 Mb/s
Audio: 7.1 Channel HD Audio. Supports Surge Protection. Nahimic Audio
I/O: 1x PS/2 Keyboard/mouse combo port,1x HDMI, 2(+4int)x USB 2.0,4(+4int)x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C, 1x RJ45 (LAN), 3 Audio jacks, 1x front panel audio connector, 1x Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection), 3x Antenna Mounting Points
Εγγύηση:2 χρόνια
