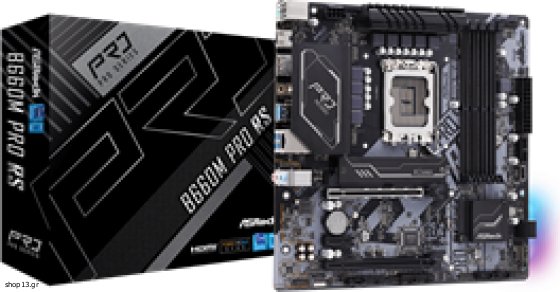

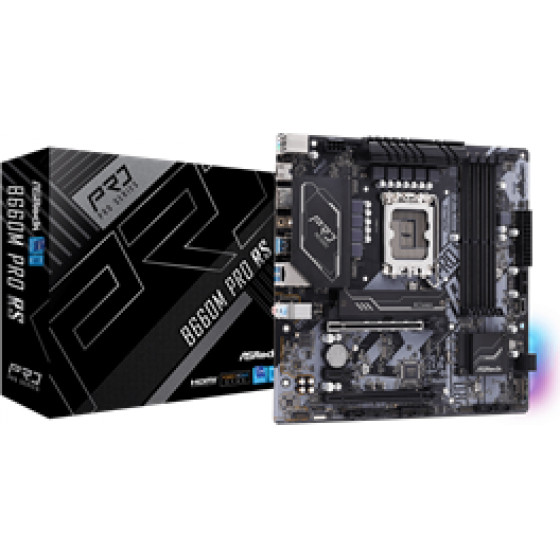

Asrock Mb Socket Intel LGA1700 12th GEN, Cs Intel B660, 4 Dimm Sockets DDR4, DP/HDMI, Lan GIGABIT, MICRO-ATX, 2YW. - (B660M Pro RS)

CPU Support: Socket Intel LGA1700 for 12th Generation Intel CPU Core
Chipset: Intel B660
MB Size: microATX
Memory Support:4 DIMM DDR4 Sockets for ECC and non-ECC un-buffered DDR4 RAM up to 5333+MHz (OC).Max 128GB. Dual Channel architecture. Support Intel XMP
VGA: Intel HD Graphics
VGA Out: 1x Display Port v1.4, 1x HDMI v2.1
Slots: 2x PCIex16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)), 1x PCIe Gen3x1 Slot, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage: 4x SATA3 6Gbps ports supports RAID 0/1/5/10, 1x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
NIC: Gigabit LAN 10/100/1000 Mb/s
Audio: 7.1 Channel HD Audio. Supports Surge Protection. Nahimic Audio
I/O: 1x PS/2 Keyboard/mouse combo port,1x Display Port, 1x HDMI, 2(+4int)x USB 2.0,4(+2int)x USB 3.2 Gen1 Type A, , 1x RJ45 (LAN), 3 Audio jacks, 1x front panel audio connector, 3x Antenna Mounting Points
Εγγύηση:2 χρόνια
