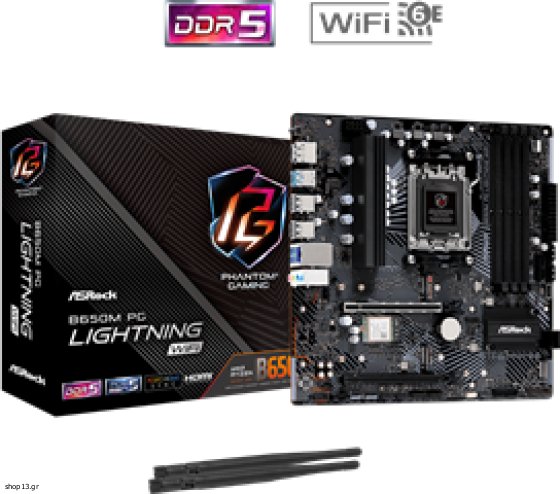

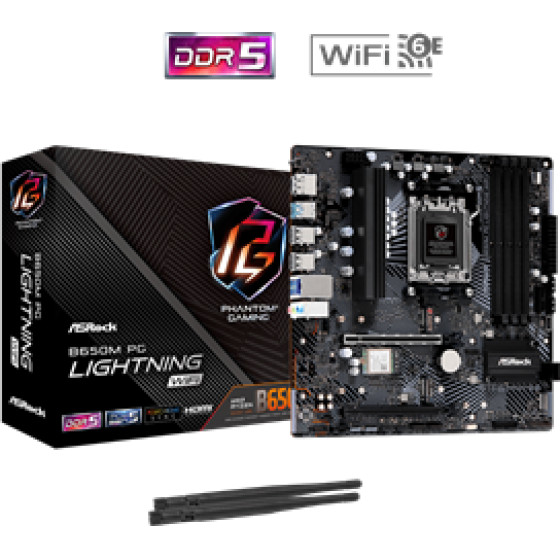

Asrock Mb Socket Amd AM5, Cs Amd B650, 4 Dimm Sockets DDR5, HDMI/DP, 2.5 Gigabit LAN, MICRO-ATX, 3YW. - (B650M Pg Lightning WIFI)

CPU Support: Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
Chipset: AMD B650.
MB Size: microATX
Memory: 4 DIMM DDR5 Sockets for non-ECC un-buffered DDR5 RAM up to 7200+MHz (OC). Max 192GB. Dual Channel DDR5 Memory Technology. Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules.
VGA Out: 1x HDMI v2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz. 1x DispalyPort v1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz. Available only on processors featuring integrated GPU.
Slots: CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode. Chipset: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module. Supports AMD CrossFire.
Storage: CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode. Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode. 4 x SATA3 6.0 Gbps Connectors. Supports RAID 0/1/10 for SATA storage devices. Supports RAID 0/1/10 for M.2 NVMe storage devices.
NIC: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s. Dragon RTL8125BG. Supports Phantom Gaming LAN Software.
WiFi & Bluetooth: 802.11ax Wi-Fi 6E Module. Supports IEEE 802.11a/b/g/n/ac/ax. Supports Dual-Band 2x2 with extended 6GHz band support. 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology. Supports Bluetooth 5.2 and High speed class II. Supports MU-MIMO
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec). Nahimic Audio.
I/O: 4(+4 int.) USB2.0, 2(+4 int.) USB3.2 Gen1 Type A, 1 internal USB3.2 Gen1 Type C, 1x USB3.2 Gen2 Type A, 1x USB3.2 Gen2 Type C, 2x Antenna ports, 1x HDMI, 1x DisplayPort 1.4, 1x LAN, 3 Audio Jacks.
Εγγύηση: 3 χρόνια
