Περιγραφή
CPU Support: AMD Socket AM5,supports AMDRyzen 9000/ 8000/ 7000 Series Processors.
Chipset: AMD B650.
MB Size: mATX.
Memory Support: Dual Channel DDR5 Memory Technology. 2x DDR5 DIMM Sockets for non-ECC un-buffered DDR5 RAM up to 6400+(OC)MT/s. Max 128GB. Supports XMP andEXPO.
VGA: AMD RDNA graphics (Actual support may vary by CPU).
VGA Out:
1 x HDMI v2.1 TMDS/ FRL 8G Compatible, supports HDR, HDCP 2.3. Max. resolution up to 4K 120Hz.
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3. Max. resolution up to 4K 120Hz.
Slots:
1x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode.
2x PCIe 4.0 x1 Slot (PCIE2 & PCIE3).
1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module.
Storage
1 x Blazing M.2_1 (Key M)Socket, supports type 2280 PCIe Gen5x4 (128 Gb/s) mode.
1 x Hyper M.2_2 (Key M) Socket, supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode.
4 x SATA3 6.0 Gb/s Connectors.
RAID:
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices.
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices.
LAN: Realtek RTL8111H Gigabit LAN 10/ 100/ 1000 Mb/s.
Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio. Nahimic Audio.

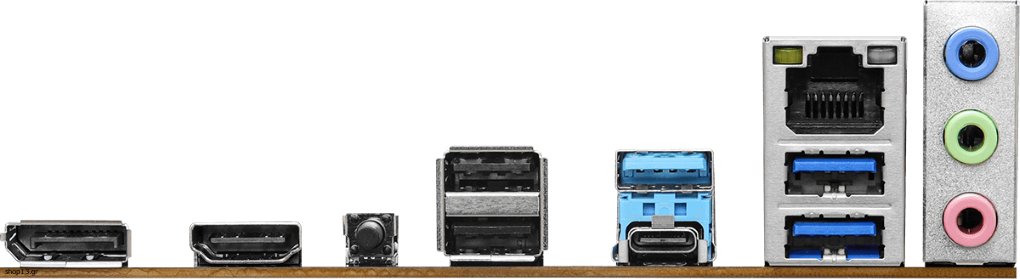

I/O:
1 x USB 3.2 Gen1 Type-C (Rear).
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front).
6 x USB 2.0 (2 Rear, 4 Front).
2 x Antenna Mounting Points (Rear).
1 x HDMI Port (Rear).
1 x DisplayPort 1.4 (Rear).
1 x RJ-45 LAN Port (Rear).
1 x BIOS Flashback Button (Rear).
HD Audio Jacks: Line in/ Front Speaker/ Microphone (Rear).
OS: Microsoft Windows 10 64-bit/ 11 64-bit.
Certification: FCC, CE, ErP/EuP.
Εγγύηση: 3 χρόνια.
