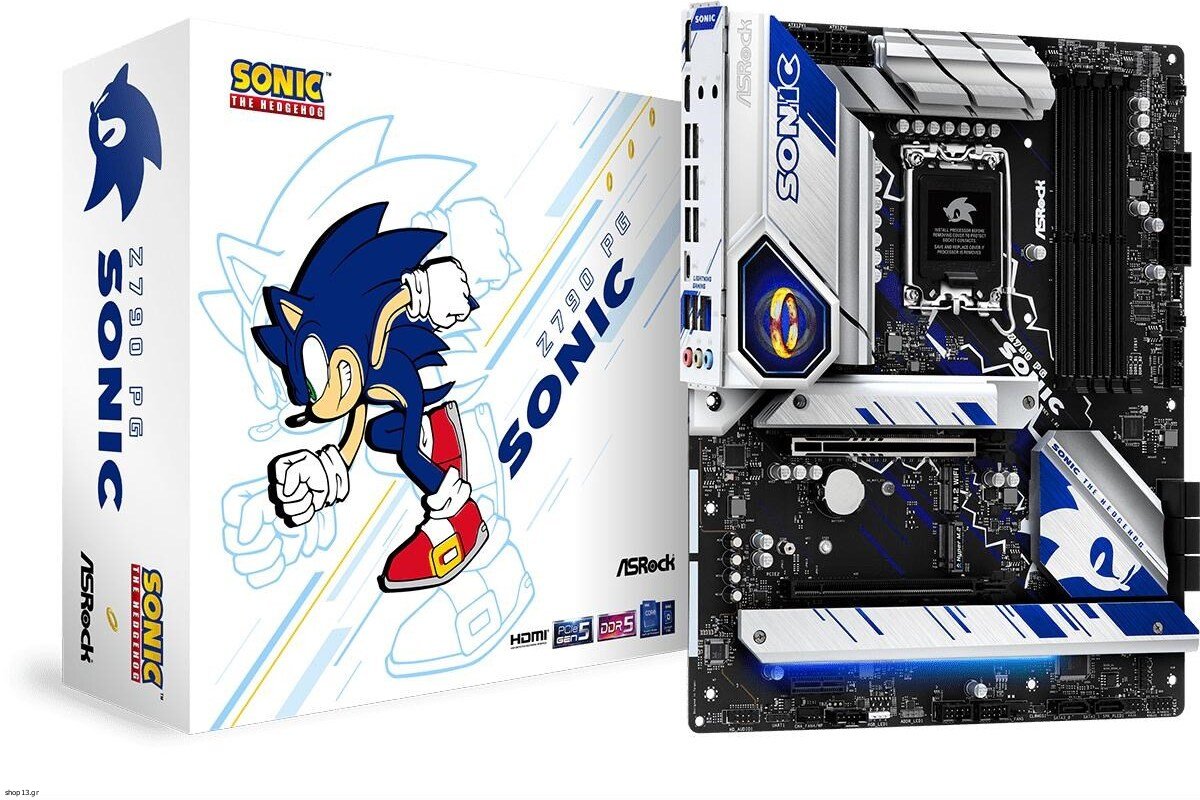

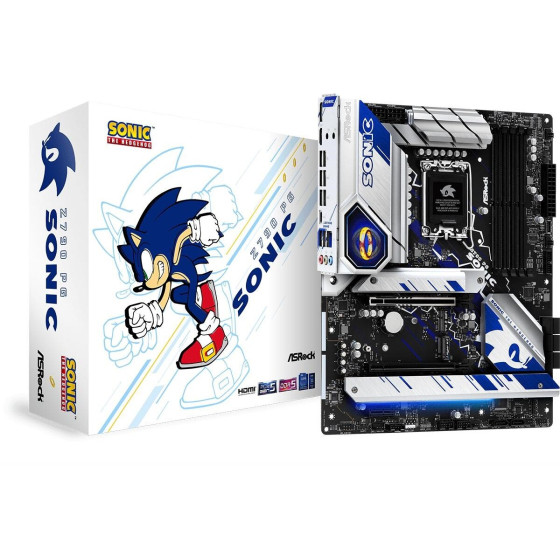

Asrock Intel Z790 LGA 1700 ATX - (Z790 PG SONIC)

Processor
Compatible processor series: Intel(R) Core(TM) i5, Intel(R) Core(TM) i7, Intel(R) Core(TM) i9
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Processor socket: LGA 1700

Features
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard chipset: Intel Z790
Audio chip: Realtek ALC897

Memory
Number of memory slots: 4
Unbuffered memory: Yes
Memory slots type: DIMM
Maximum internal memory: 128 GB
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Killer E3100G
Ethernet LAN: Yes

Internal I/O
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 8
Front panel audio connector: Yes
Thunderbolt headers: 1
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
TPM connector: Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
RAID levels: 0, 1, 10, 5
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Headphone outputs: 1
Microphone in: Yes

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1


Warranty: warranty 36 months
