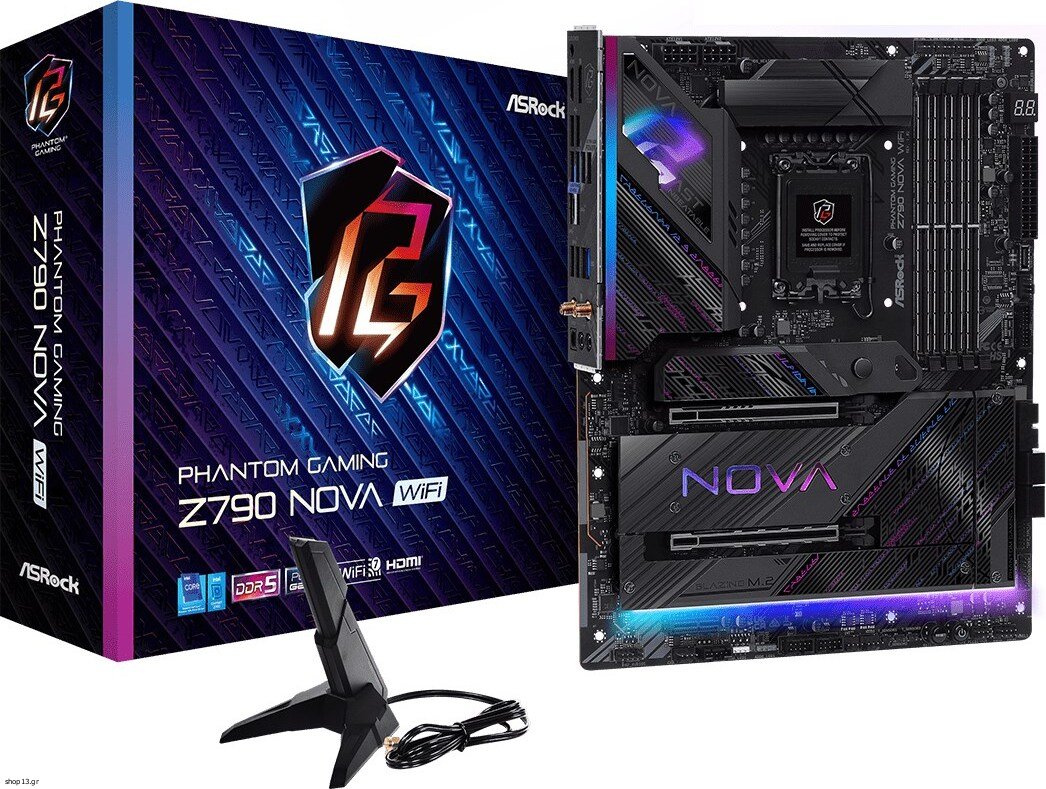

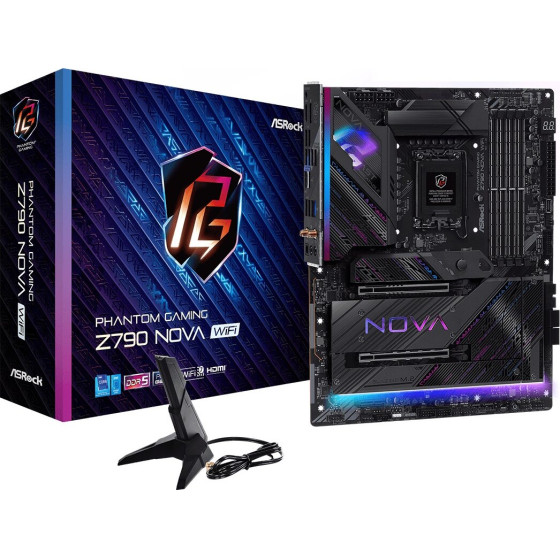

Asrock Intel Z790 LGA 1700 ATX - (Z790 NOVA WIFI)

Technical details
Sustainability compliance: Yes
Sustainability certificates: ErP
Compliance certificates: Federal Communications Commission (FCC), EuP, CE

Processor
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Celeron(R) G, Intel(R) Core(TM) i5, Intel(R) Core(TM) i3, Intel(R) Pentium(R) Gold
Processor socket: LGA 1700

Graphics
Graphics card family: Intel
Graphics card: Intel Iris Xe Graphics
HDCP: Yes
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Crossfire

Features
Motherboard chipset: Intel Z790
Motherboard chipset family: Intel
Product colour: Black
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Audio chip: Realtek ALC4082

Memory
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Unbuffered memory: Yes
Memory slots type: DIMM
ECC ?ompatibility: Non-ECC
Number of memory slots: 4
Supported memory clock speed (max): 8000 MHz
Supported memory types: DDR5-SDRAM

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b
LAN controller: Killer E3100G
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes

Internal I/O
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 5
TPM connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Thunderbolt headers: 1
12V power connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2x2 connectors: 1

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
M.2 standoff included: Yes
Screws included: Yes
Antenna included: Yes

Storage controllers
RAID levels: 0, 10, 1, 5
RAID support: Yes
Supported storage drive interfaces: M.2
Number of storage drives supported: 6

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
DisplayPort version: 1.4
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-C, USB Type-A
S/PDIF out port: Yes
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Microphone in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1

Safety warning
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.


Warranty: warranty 36 months
