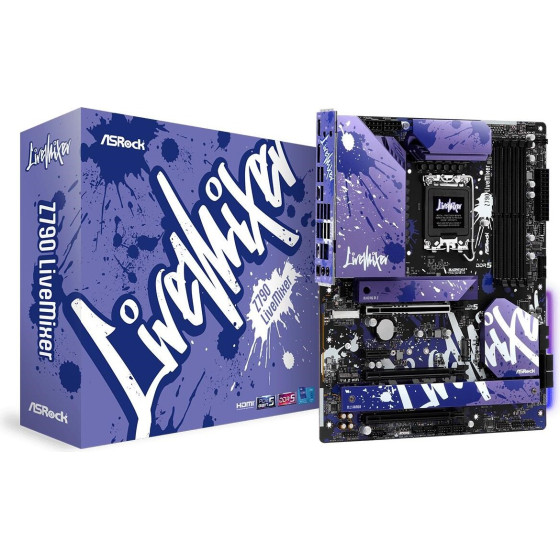

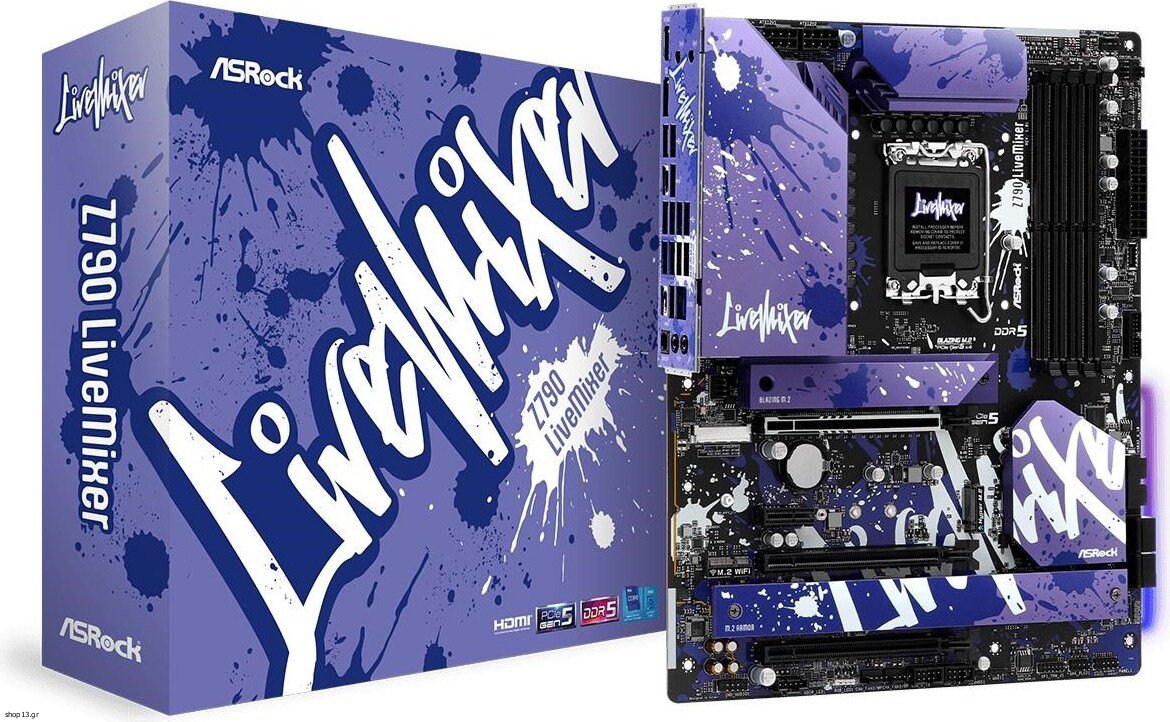

Asrock Intel Z790 LGA 1700 ATX - (Z790 LiveMixer)

Processor
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Compatible processor series: Intel(R) Core(TM) i5, Intel(R) Core(TM) i7, Intel(R) Core(TM) i9
Processor socket: LGA 1700

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard form factor: ATX
Motherboard chipset: Intel Z790
Motherboard chipset family: Intel

Memory
Memory channels: Dual-channel
Memory slots type: DIMM
Maximum internal memory: 128 GB
Number of memory slots: 4
Supported memory types: DDR5-SDRAM

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Dragon RTL8125BG
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
Number of SATA III connectors: 4
RGB LED pin header: Yes
Thunderbolt headers: 1
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
TPM connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2

BIOS
BIOS type: UEFI AMI

Storage controllers
RAID levels: 0, 10, 1, 5
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
S/PDIF out port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
USB 2.0 ports quantity: 6

Expansion slots
PCI Express x16 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1


Warranty: warranty 36 months
