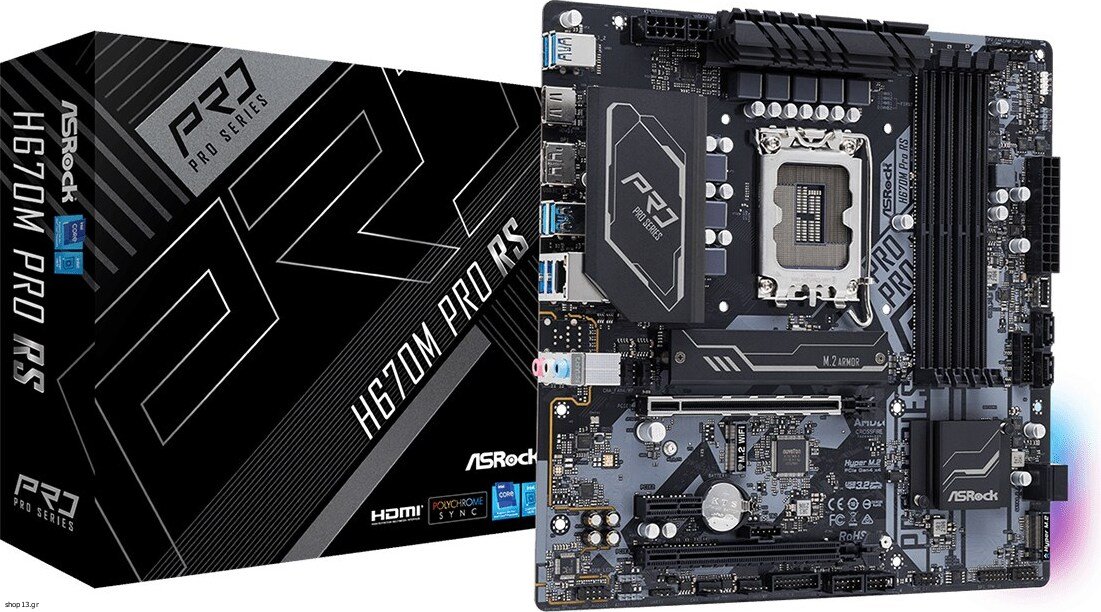

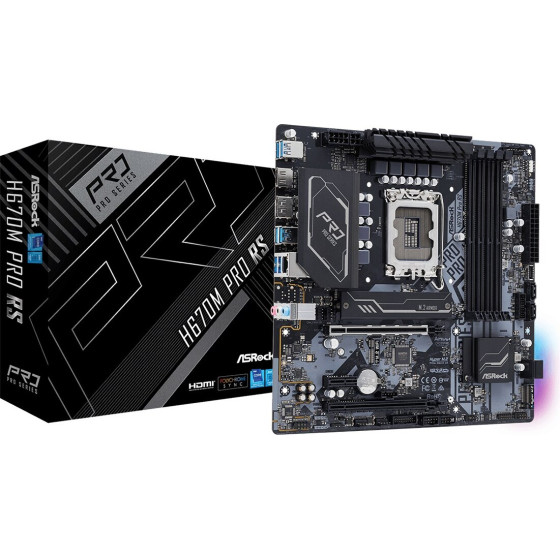

Asrock Intel H670 LGA 1700 micro ATX - (H670M PRO RS)

Processor
Maximum number of SMP processors: 1
Compatible processor series: Intel(R) Core(TM) i3, Intel(R) Pentium(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Core(TM) i5, Intel(R) Celeron(R)
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Maximum resolution: 7680 x 4320 pixels
HDCP: Yes

Features
PC health monitoring: Fan, CPU, Voltage, Temperature
Harmonized System (HS) code: 84733020
Motherboard form factor: micro ATX
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Motherboard chipset: Intel H670
Audio output channels: 7.1 channels

Memory
Supported memory clock speeds: 4800
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
LAN controller: Intel(R) I219-V
Wake-on-LAN ready: Yes
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
Front panel audio connector: Yes
12V power connector: Yes
Number of SATA III connectors: 4
Thunderbolt headers: 1
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
TPM connector: Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes
USB 2.0 connectors: 2
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
RAID levels: 1, 10, 5, 0
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1

Expansion slots
PCI Express x16 slots: 2
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1


Warranty: warranty 24 months
