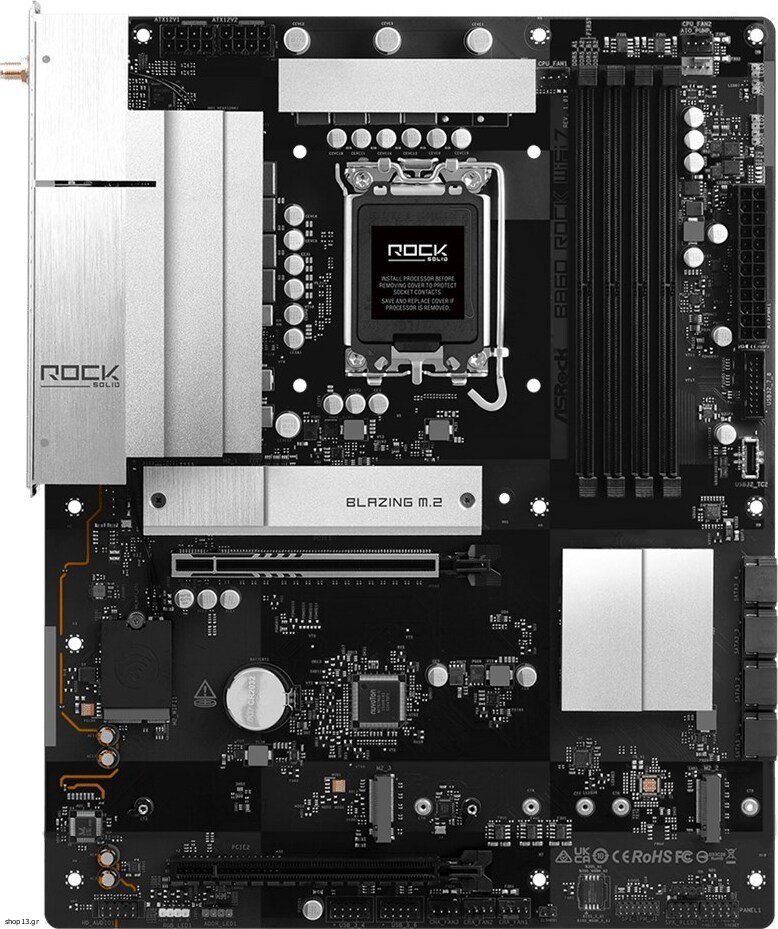

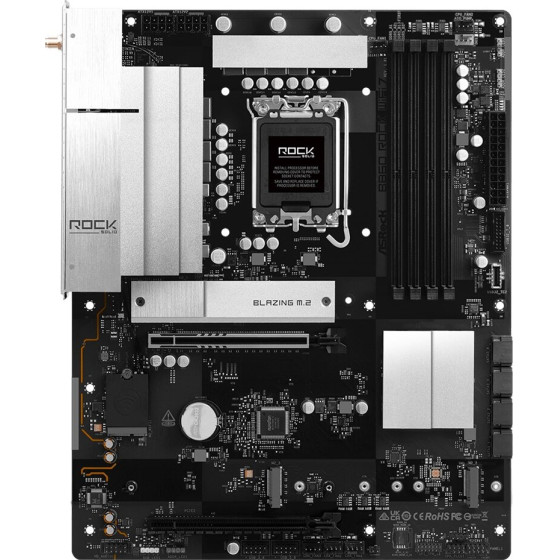

Asrock Intel B860 Lga 1851 (Socket V1) Atx - (B860 Rock Wifi 7)
[Κωδικός : 910477]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Technical details
Compliance certificates: CE, Federal Communications Commission (FCC)
Processor
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)
Graphics
HDCP: Yes
High Dynamic Range (HDR) supported: Yes
Maximum resolution: 3840 x 2160 pixels
HDCP version: 2.3
Parallel processing technology support: Not supported
Features
Motherboard form factor: ATX
Motherboard chipset family: Intel
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 11 x64
Audio output channels: 7.1 channels
Motherboard chipset: Intel B860
Product colour: Black
Memory
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: Non-ECC
Supported memory clock speed (max): 8666 MHz
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 4
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Weight & dimensions
Depth: 244 mm
Width: 305 mm
Network
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes
LAN controller: Dragon RTL8125BG
Ethernet interface type: Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
Number of chassis fan connectors: 4
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of EPS power connectors (8-pin): 2
Number of water pump connectors: 1
USB 2.0 connectors: 2
RGB LED pin header: Yes
BIOS
BIOS type: UEFI AMI
Packaging content
Antenna included: Yes
Cables included: SATA
Storage controllers
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels: 5, 10, 0, 1
Number of storage drives supported: 7
Rear panel I/O ports
Headphone outputs: 3
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
Microphone in: Yes
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB connector type: USB Type-C, USB Type-A
WiFi-AP antenna jack: 2
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Expansion slots
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
1st M.2 largest key size: 2280
Warranty: warranty 36 months
Compliance certificates: CE, Federal Communications Commission (FCC)
Processor
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)
Graphics
HDCP: Yes
High Dynamic Range (HDR) supported: Yes
Maximum resolution: 3840 x 2160 pixels
HDCP version: 2.3
Parallel processing technology support: Not supported
Features
Motherboard form factor: ATX
Motherboard chipset family: Intel
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 11 x64
Audio output channels: 7.1 channels
Motherboard chipset: Intel B860
Product colour: Black
Memory
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: Non-ECC
Supported memory clock speed (max): 8666 MHz
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 4
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Weight & dimensions
Depth: 244 mm
Width: 305 mm
Network
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes
LAN controller: Dragon RTL8125BG
Ethernet interface type: Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
Number of chassis fan connectors: 4
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of EPS power connectors (8-pin): 2
Number of water pump connectors: 1
USB 2.0 connectors: 2
RGB LED pin header: Yes
BIOS
BIOS type: UEFI AMI
Packaging content
Antenna included: Yes
Cables included: SATA
Storage controllers
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels: 5, 10, 0, 1
Number of storage drives supported: 7
Rear panel I/O ports
Headphone outputs: 3
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
Microphone in: Yes
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB connector type: USB Type-C, USB Type-A
WiFi-AP antenna jack: 2
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Expansion slots
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
1st M.2 largest key size: 2280
Warranty: warranty 36 months
Χαρακτηριστικά
Μοντέλο
Asrock Intel B860 LGA 1851 (Socket V1) ATX - (B860 ROCK WIFI 7)
Δείτε περισσότερα
