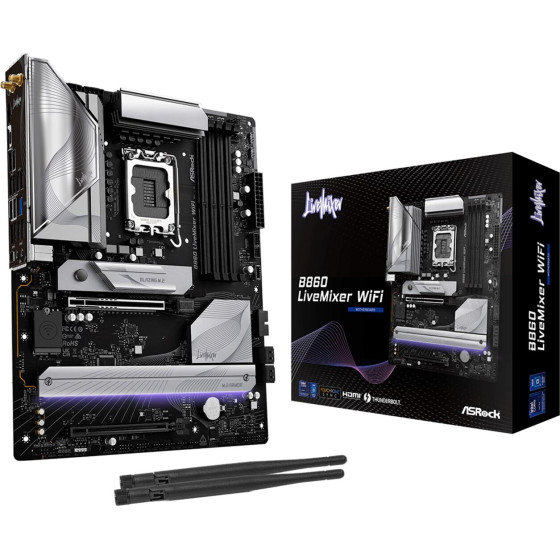

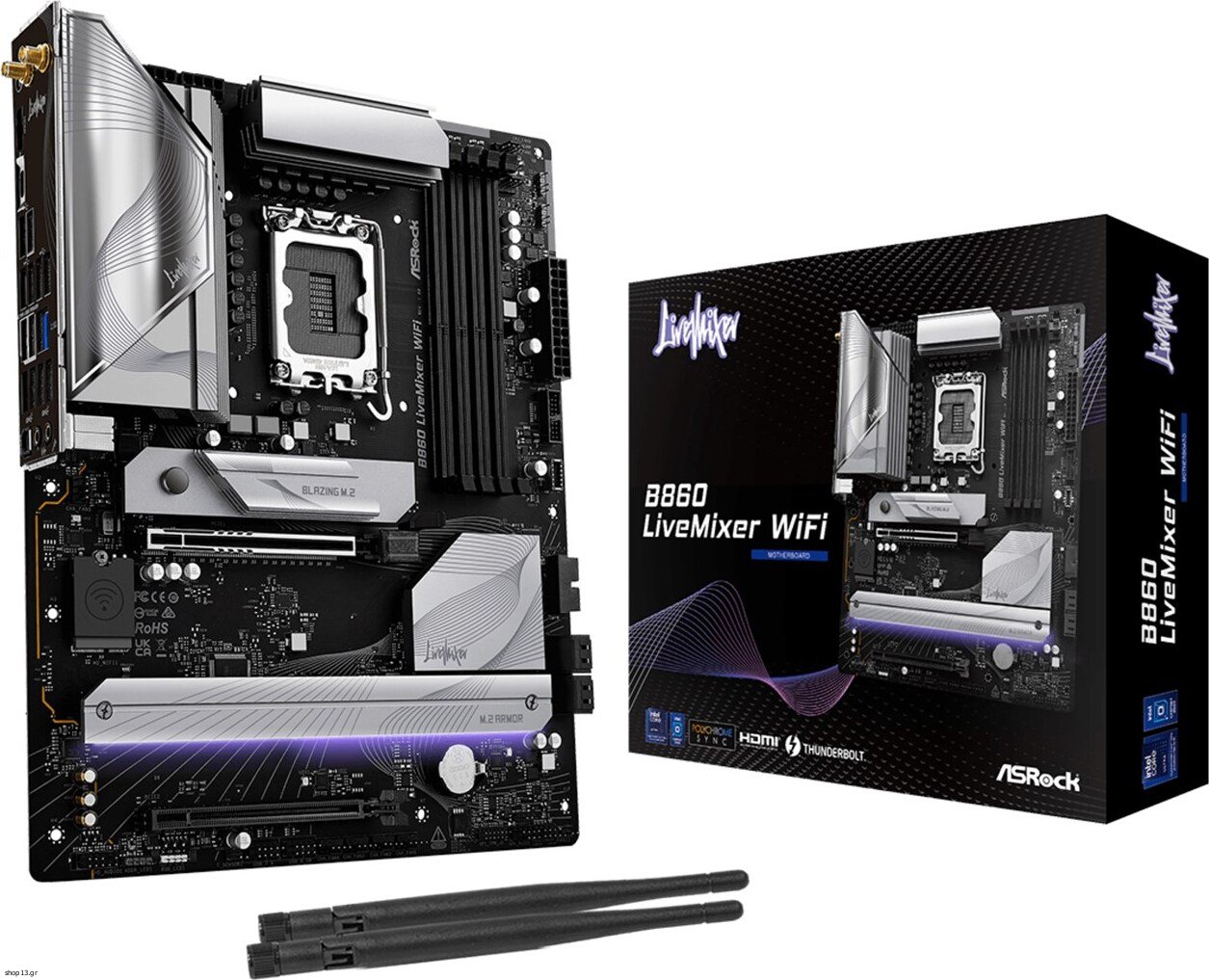

Asrock Intel B860 LGA 1851 (Socket V1) ATX - (B860 LIVEMIXER WIFI)

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)

Graphics
Maximum resolution: 7680 x 4320 pixels
HDCP: Yes
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11 x64
Audio output channels: 7.1 channels
Audio chip: Realtek ALC1220
Motherboard form factor: ATX
Product colour: Black
Motherboard chipset family: Intel
Motherboard chipset: Intel B860

Memory
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: Non-ECC
Unbuffered memory: Yes
Maximum internal memory: 256 GB

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Wi-Fi standards: 802.11b, Wi-Fi 6E (802.11ax), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Bluetooth: Yes

Internal I/O
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 5
12V power connector: Yes
TPM connector: Yes
CPU fan connector: Yes
Number of water pump connectors: 1
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
Number of EPS power connectors (8-pin): 2
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
Antenna included: Yes

Storage controllers
RAID levels: 1, 10, 0, 5
Number of storage drives supported: 7
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Thunderbolt ports quantity: 1
WiFi-AP antenna jack: 2
Microphone in: Yes
HDMI ports quantity: 1
Headphone outputs: 1
HDMI version: 2.1
USB 2.0 ports quantity: 6
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
USB connector type: USB Type-A, USB Type-C

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
3rd M.2 largest key size: 2280

Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.


Warranty: warranty 36 months
