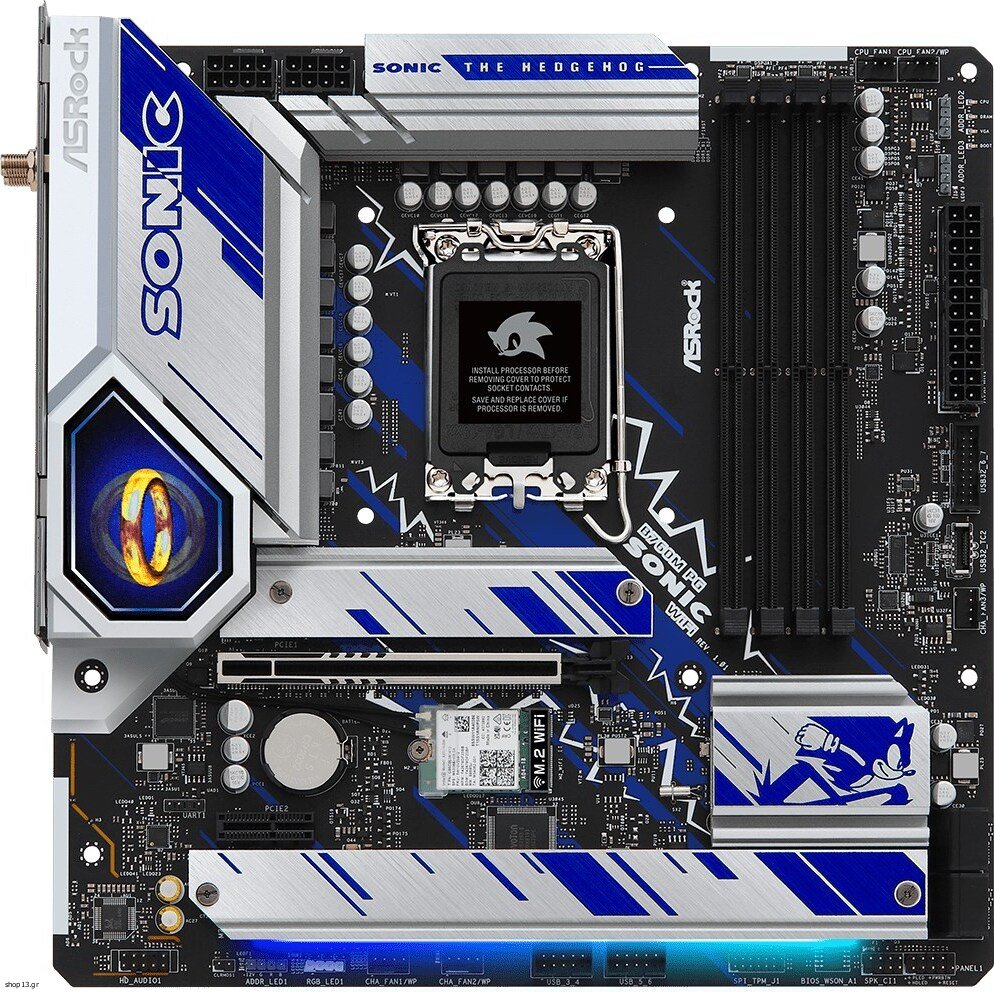

Asrock Intel B760 LGA 1700 micro ATX - (B760M PG SONIC WIFI)

Processor
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Compatible processor series: Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Core(TM) i5
Processor socket: LGA 1700

Features
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: micro ATX

Memory
Maximum internal memory: 128 GB
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: Non-ECC
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Bluetooth: Yes
Wi-Fi standards: 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
RGB LED pin header: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
TPM connector: Yes
Front panel audio connector: Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 2.0 connectors: 2

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 10, 5, 1, 0
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
DisplayPort version: 1.4
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 2
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1


Warranty: warranty 36 months
