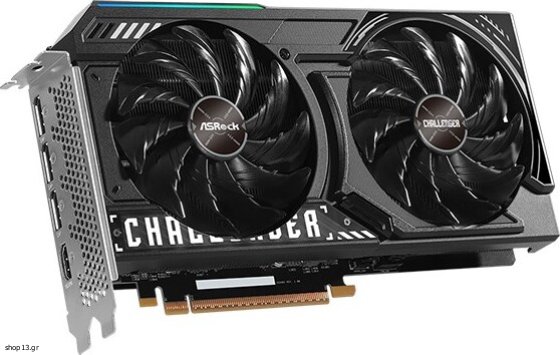

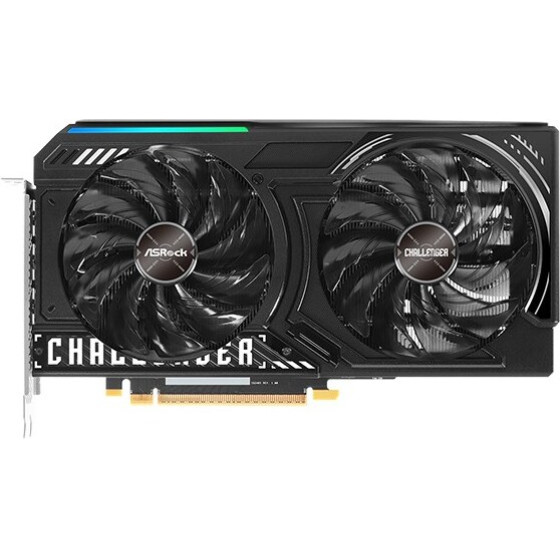

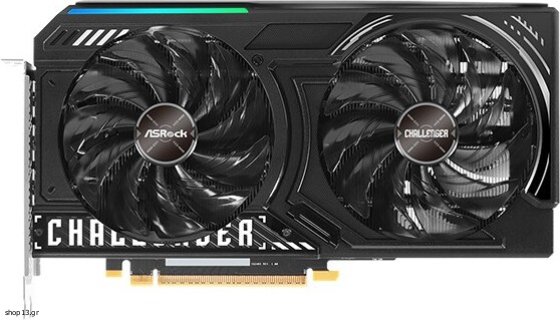

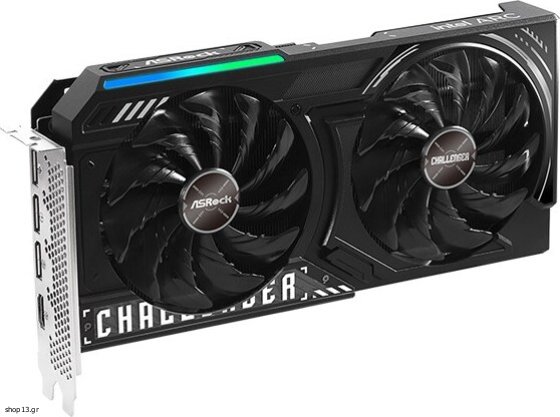

Asrock Challenger Intel Arc B570 10GB OC GDDR6 - (B570 CL 10GO)

Technical details
Compliance certificates: Federal Communications Commission (FCC), CE, UKCA

Processor
Maximum resolution: 7680 x 4320 pixels
CUDA: No
Graphics processor family: Intel
Maximum displays per videocard: 4
Processor frequency: 2600 MHz
Graphics processor: Arc B570

Memory
Discrete graphics card memory: 10 GB
Data transfer rate: 19 Gbit/s
Memory bus: 160 bit
Graphics card memory type: GDDR6

Design
Cooling technology: Asrock Striped Axial Fan
Cooling type: Active
Product colour: Black
Number of slots: 2
Form factor: Full-Height/Half-Length (FH/HL)
Illumination: Yes
Illumination colour: Multi
Number of fans: 2 fan(s)

Power
Power supply location: Top
Supplementary power connectors: 1x 8-pin
Minimum system power supply: 600 W

Weight & dimensions
Depth: 41 mm
Height: 132 mm
Length: 249 mm
Weight: 720 g

Performance
Intel(R) Xe Matrix Extensions (Intel(R) XMX) Engines: 144
TV tuner integrated: No
DirectX version: 12 Ultimate
OpenGL version: 4.6
HDCP: Yes
Dual Link DVI: No

Packaging data
Package type: Box

Packaging content
Quick installation guide: Yes

Ports & interfaces
HDMI ports quantity: 1
DisplayPort version: 2.1
Interface type: PCI Express x8 4.0
HDMI version: 2.1a
DisplayPorts quantity: 3

Safety warning
Warnings: Install in a well-ventilated place to prevent overheating., Do not open the graphics card case to avoid electric shock., Dispose of in accordance with local regulations for electronic waste.


Warranty: warranty 36 months
