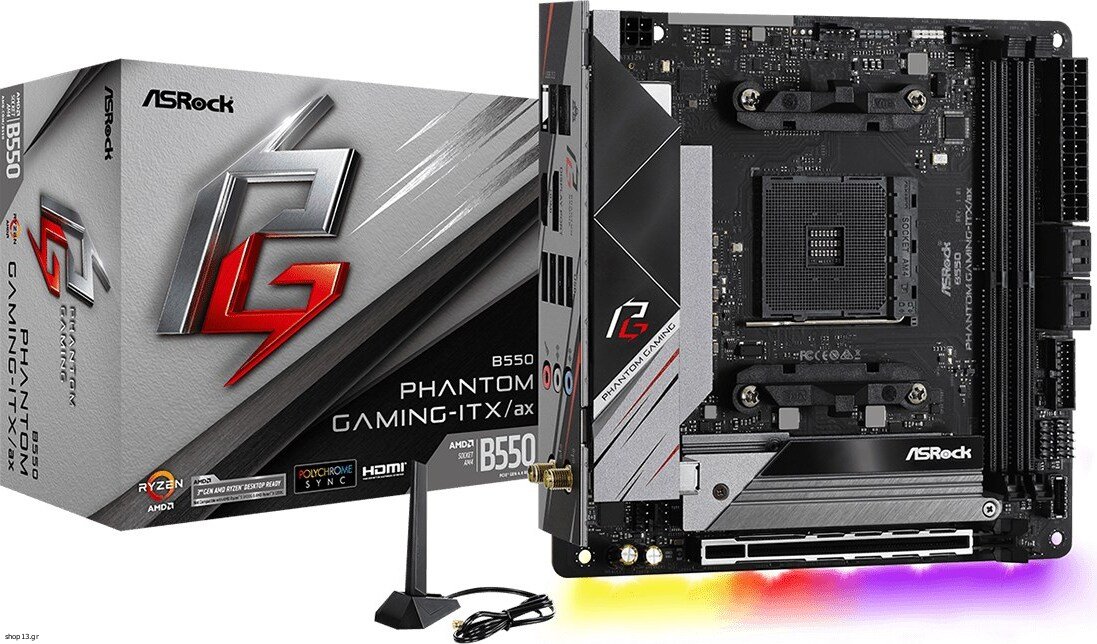

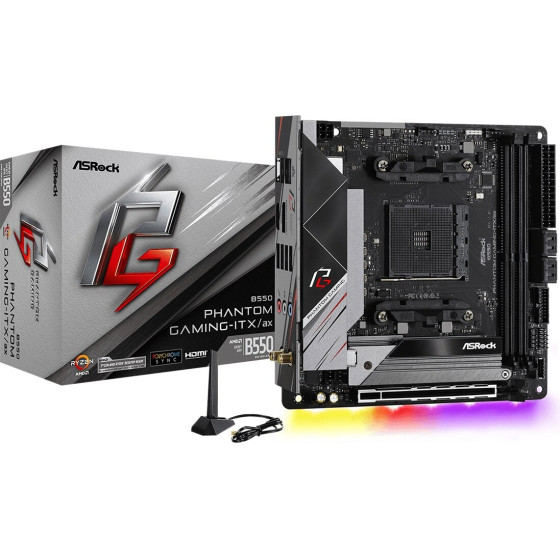

Asrock B550 Phantom Gaming-ITX/a Socket AM4 mini ITX AMD B550 - (B550 PHANTOM GAMING-ITX/AX)
[Κωδικός : 756659]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Processor
Maximum number of SMP processors: 1
Compatible processor series: 3rd Generation AMD Ryzen(TM) 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen(TM) 7, 3rd Generation AMD Ryzen(TM) 9
Processor manufacturer: AMD
Processor socket: Socket AM4
Graphics
Graphics card: Radeon Vega
HDCP: Yes
DirectX version: 12.0
On-board graphics card: Yes
Graphics card family: AMD
Features
Motherboard chipset: AMD B550
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Audio chip: Realtek ALC1220
Motherboard form factor: mini ITX
Memory
Supported memory clock speeds: 4466, 4733, 4666, 5000, 4866, 4533, 4800, 4933, 2400, 3466, 3200 MHz, 4266, 2133, 4200, 3866, 4333, 4600, 4133, 4000, 3800, 2933, 3600, 2667, 3733, 4400
Maximum internal memory: 64 GB
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Weight & dimensions
Depth: 170 mm
Width: 170 mm
Network
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax)
Wake-on-LAN ready: Yes
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.1
Internal I/O
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
BIOS
BIOS type: UEFI AMI
Packaging content
Drivers included: Yes
Storage controllers
Supported storage drive interfaces: M.2, Serial ATA III
Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DVI-I ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Safety warning
Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
Warranty: warranty 24 months
Maximum number of SMP processors: 1
Compatible processor series: 3rd Generation AMD Ryzen(TM) 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen(TM) 7, 3rd Generation AMD Ryzen(TM) 9
Processor manufacturer: AMD
Processor socket: Socket AM4
Graphics
Graphics card: Radeon Vega
HDCP: Yes
DirectX version: 12.0
On-board graphics card: Yes
Graphics card family: AMD
Features
Motherboard chipset: AMD B550
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Audio chip: Realtek ALC1220
Motherboard form factor: mini ITX
Memory
Supported memory clock speeds: 4466, 4733, 4666, 5000, 4866, 4533, 4800, 4933, 2400, 3466, 3200 MHz, 4266, 2133, 4200, 3866, 4333, 4600, 4133, 4000, 3800, 2933, 3600, 2667, 3733, 4400
Maximum internal memory: 64 GB
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Weight & dimensions
Depth: 170 mm
Width: 170 mm
Network
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax)
Wake-on-LAN ready: Yes
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.1
Internal I/O
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
BIOS
BIOS type: UEFI AMI
Packaging content
Drivers included: Yes
Storage controllers
Supported storage drive interfaces: M.2, Serial ATA III
Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DVI-I ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Safety warning
Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
Warranty: warranty 24 months
