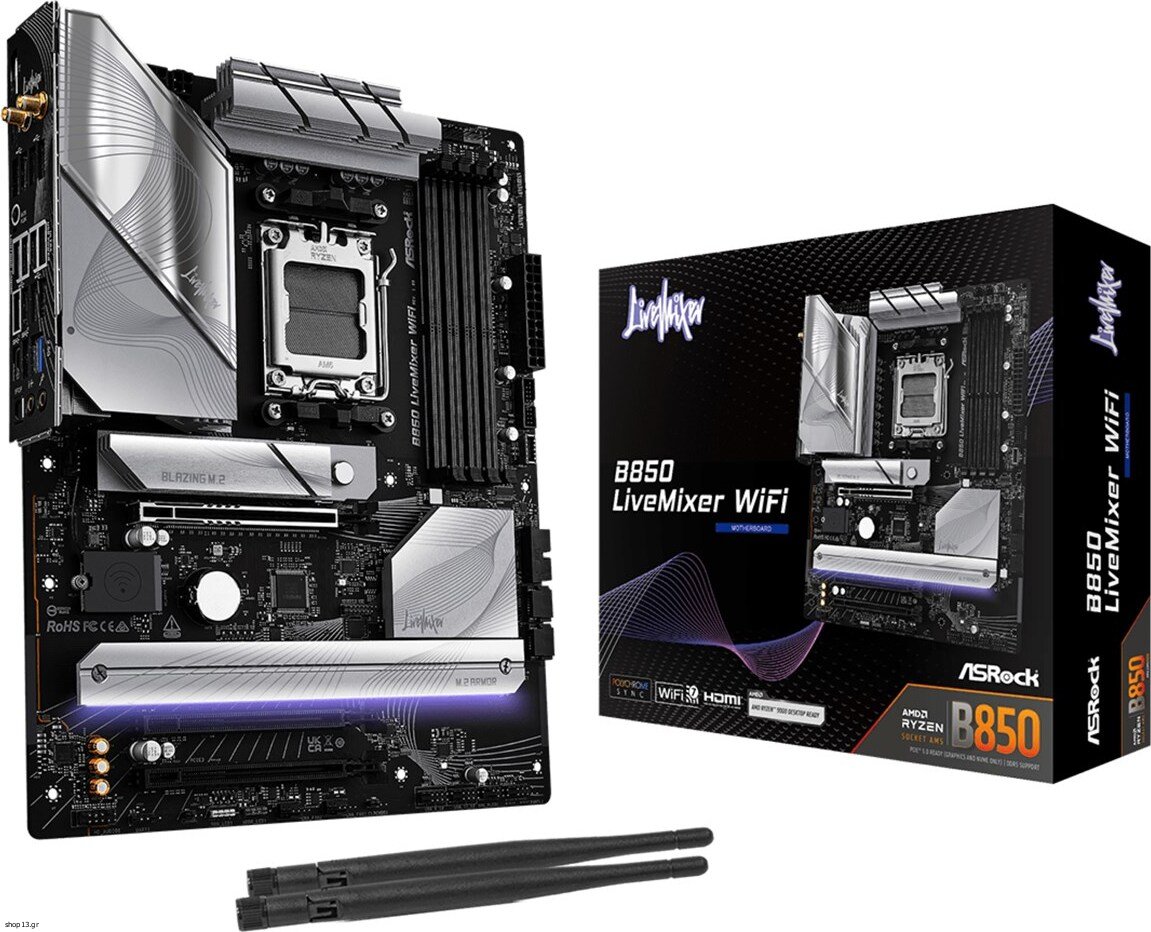

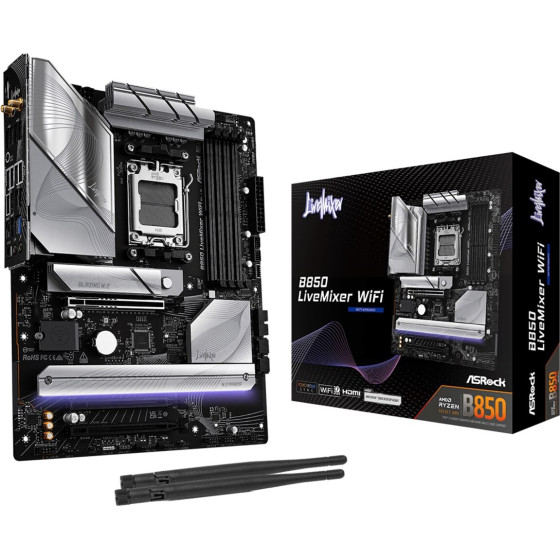

Asrock AMD B850 Socket AM5 ATX - (B850 LiveMixer WiFi)

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5

Graphics
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 3840 x 2160 pixels

Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC1220
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: ATX
Product colour: Black
Audio output channels: 7.1 channels
Motherboard chipset family: AMD

Memory
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
ECC ?ompatibility: ECC & Non-ECC
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth version: 5.4
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O
12V power connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2x2 connectors: 1
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of CPU fan connectors: 2
CPU fan connector: Yes
Number of SATA III connectors: 2
Number of EPS power connectors (8-pin): 1
Number of chassis fan connectors: 3
USB 2.0 connectors: 2
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of water pump connectors: 1
Number of RGB LED pin headers: 4
ATX Power connector (24-pin): Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Antenna included: Yes
Cables included: SATA

Storage controllers
RAID levels: 0, 1, 10
Number of storage drives supported: 5
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Headphone outputs: 1
WiFi-AP antenna jack: 2
USB connector type: USB Type-C, USB Type-A
S/PDIF out port: Yes
Microphone in: Yes
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 8
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 largest key size: 2280
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 3
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.


Warranty: warranty 36 months
