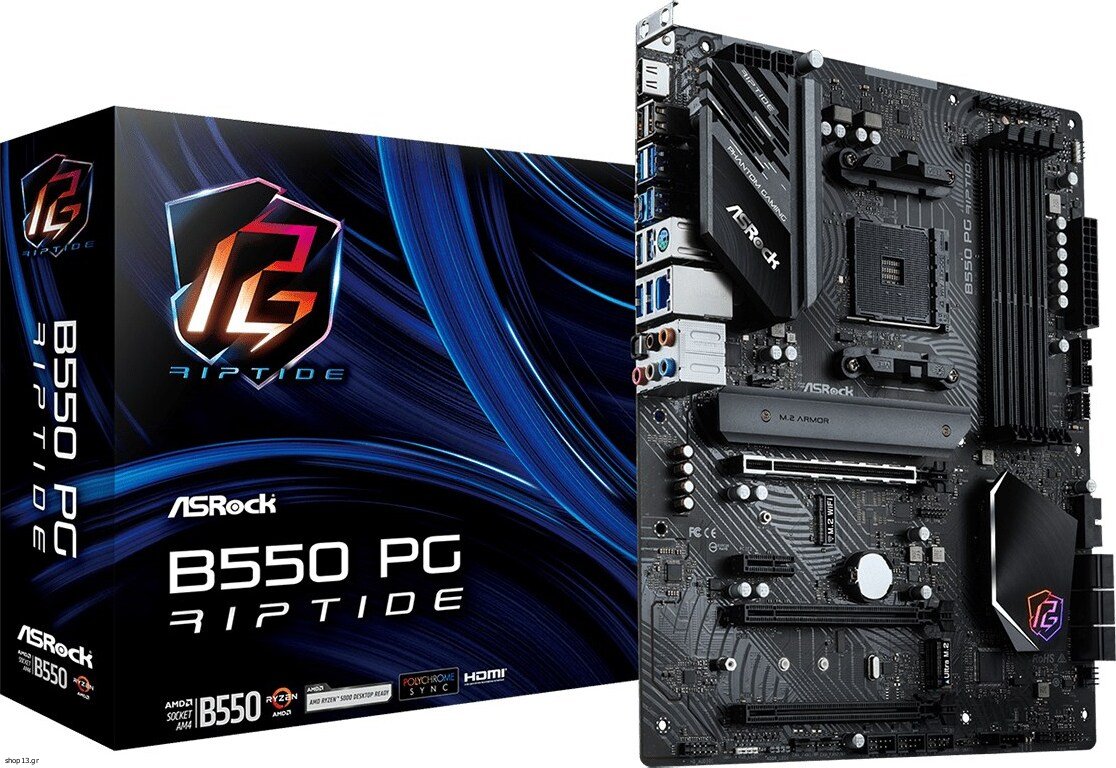

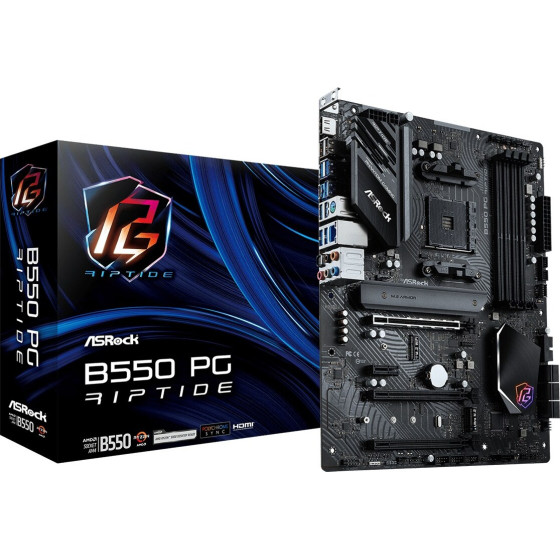

Asrock AMD B550 Socket AM4 ATX - (B550 PG RIPTIDE)

Processor
Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor socket: Socket AM4

Graphics
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX

Features
PC health monitoring: Temperature, Voltage, Fan, CPU
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: ATX

Memory
Supported memory clock speeds: 2133, 4200, 3200 MHz, 4266, 3866, 3800, 4466, 2400, 3466, 2667, 3733, 4400, 4666, 4533, 4133, 4000, 4933, 2933, 3600, 4733, 4333, 4600
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
ECC ?ompatibility: Non-ECC

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 330 mm

Network
Wake-on-LAN ready: Yes
LAN controller: Killer E3100G
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
Thunderbolt headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
TPM connector: Yes
CPU fan connector: Yes
USB 2.0 connectors: 3
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 6
Number of chassis fan connectors: 5
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
Drivers included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 10, 0
RAID support: Yes

Rear panel I/O ports
S/PDIF out port: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Digital audio optical out: 1
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1

Expansion slots
PCI Express x16 slots: 3
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1

Other features
Weight: 465 g

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture., Dispose of according to local electro-waste regulations.


Warranty: warranty 36 months
