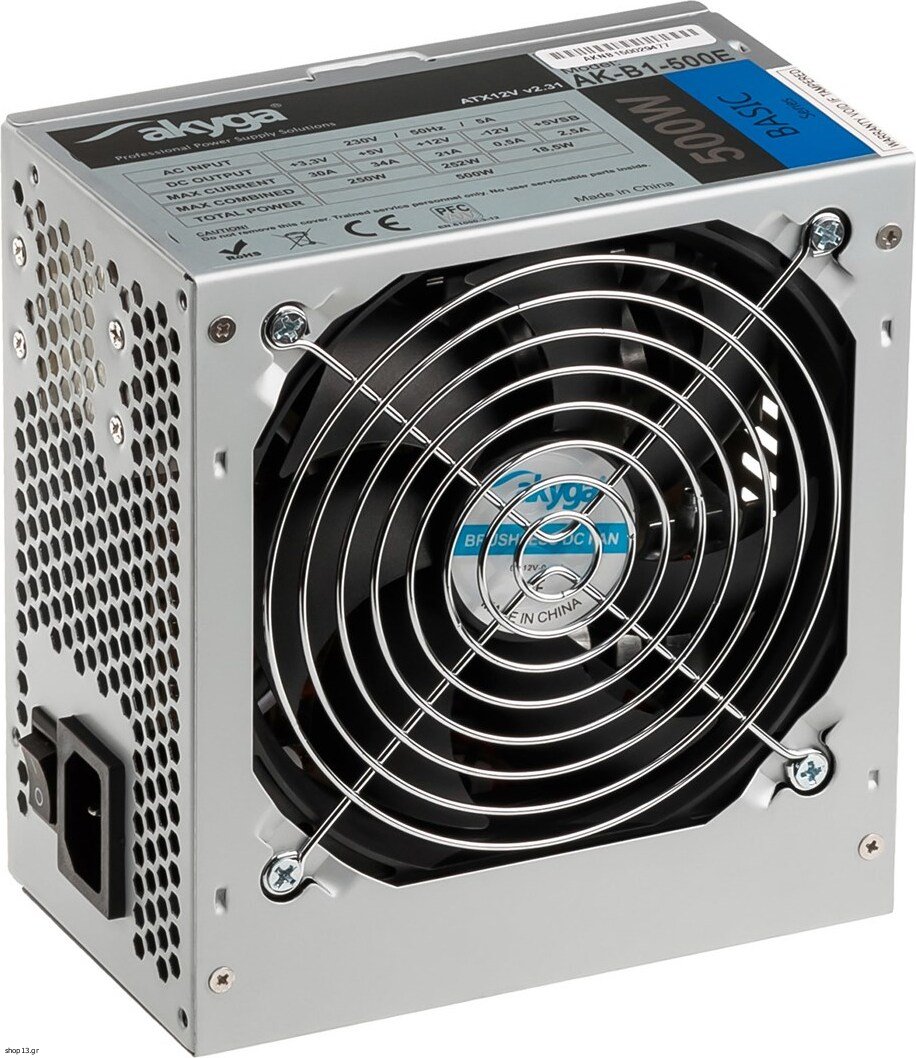

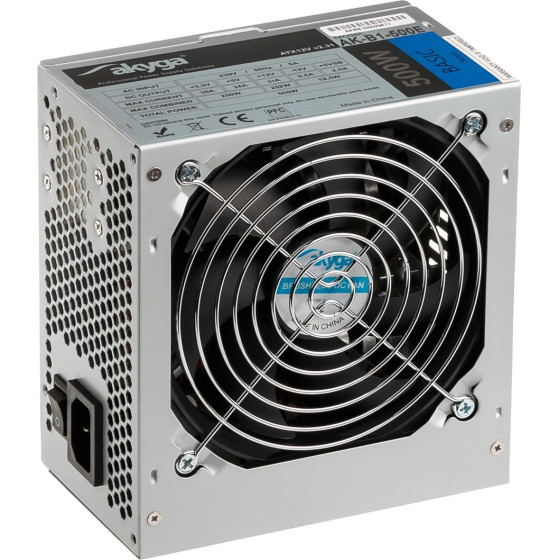

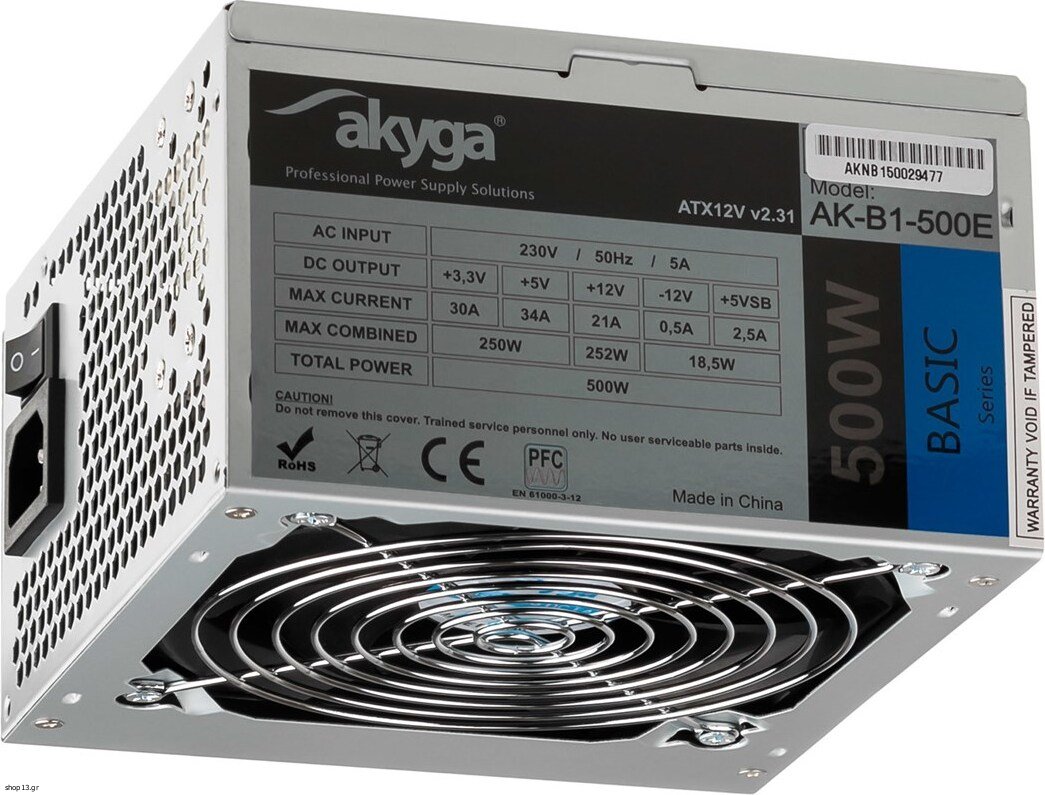

Akyga power supply unit 500 W 20+4 pin ATX ATX Grey - (AK-B1-500E)

Technical details
Sustainability certificates: RoHS

Design
Product colour: Grey
Fan diameter: 12 cm
On/off switch: Yes
Number of fans: 1 fan(s)

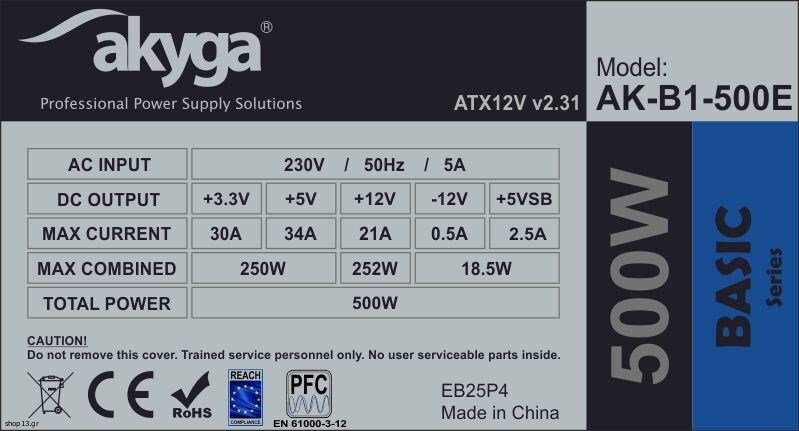

Power
Total power: 500 W
Max output current (+12V): 21 A
Max output current (+3.3V): 30 A
AC input voltage: 220 V
Power Factor Correction (PFC) type: Passive
Combined power (+5V): 250 W
Combined power (+12V): 252 W
Combined power (+3.3V): 250 W
Max output current (+5V): 34 A
Input current: 5 A

Operational conditions
Operating temperature (T-T): 5 - 50 °C

Weight & dimensions
Weight: 1.01 kg
Height: 85 mm
Width: 150 mm
Depth: 140 mm

Performance
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
ATX version: 2.31
Purpose: PC
Supported motherboard form factors: ATX

Packaging data
Package weight: 1.09 kg
Manual: Yes
Package height: 95 mm
Package depth: 220 mm
Package width: 160 mm
Package type: Box

Packaging content

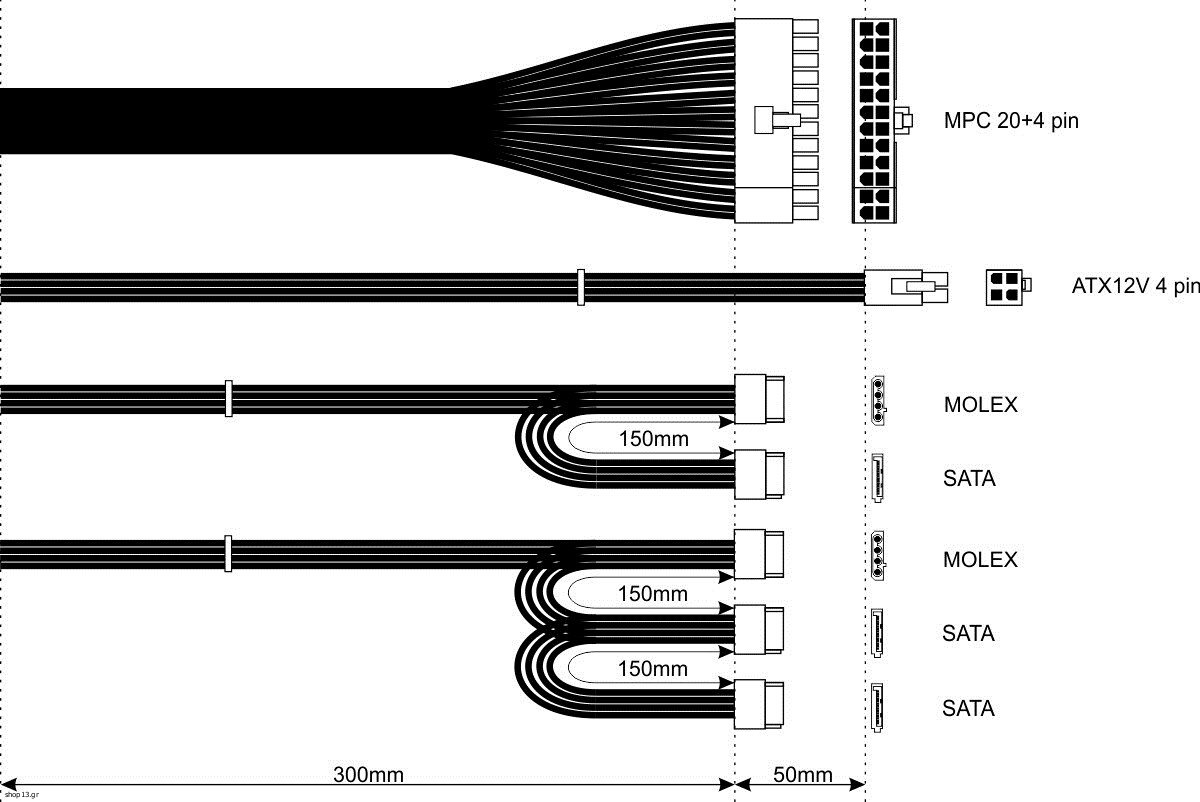

Cables included: Peripheral (Molex) to SATA 3.3, SATA

Ports & interfaces
EPS power connector (8-pin): No
Peripheral (Molex) power cable length: 300 mm
SATA power cable length: 300
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power connector: 20+4 pin ATX
ATX power connector (12+4 pin): Yes

Other features
Fan controller: Yes
Number of cables: 4
Warranty card: Yes
Voltage tolerance: 70%

Safety warning
Warnings: Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.


Warranty: warranty 24 months
