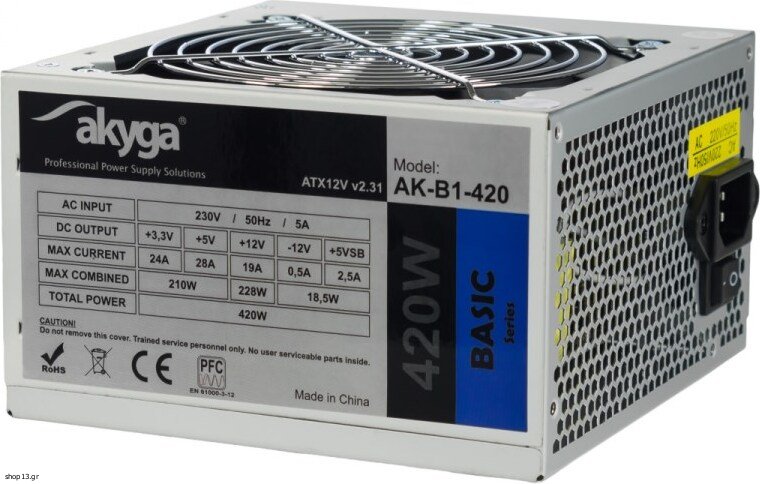

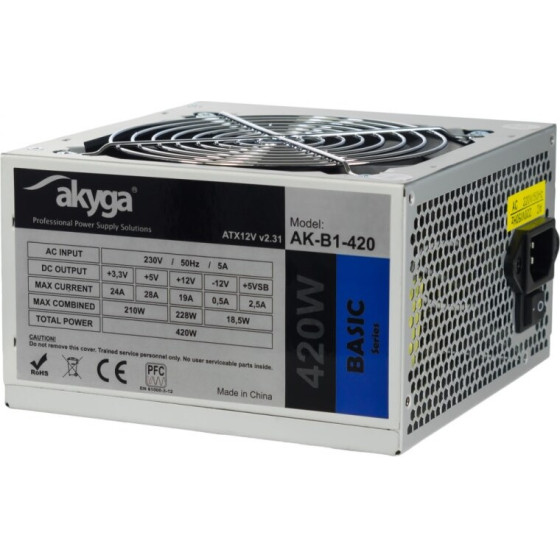

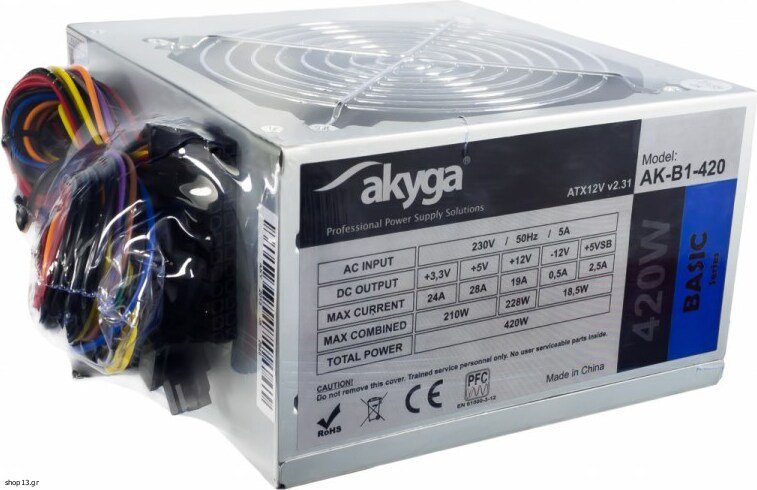

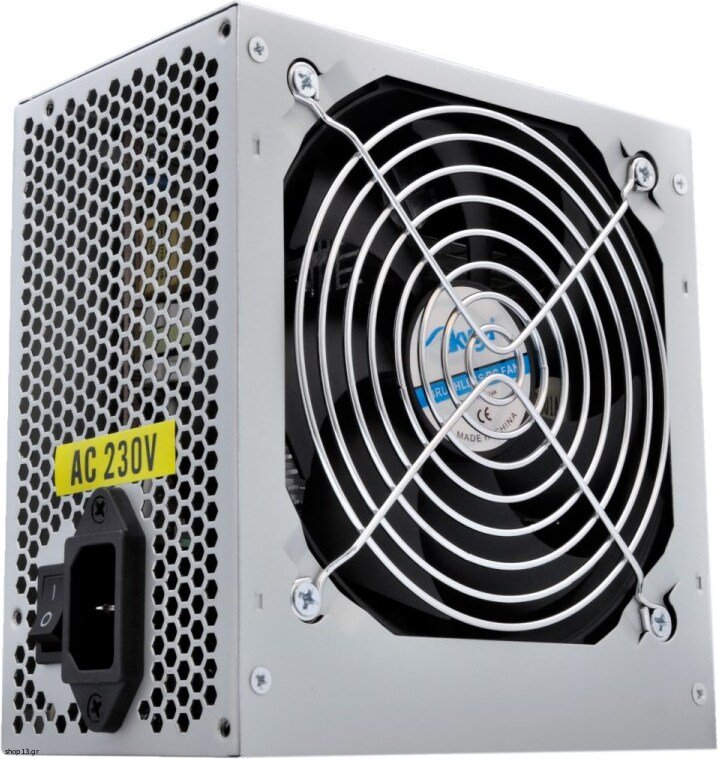

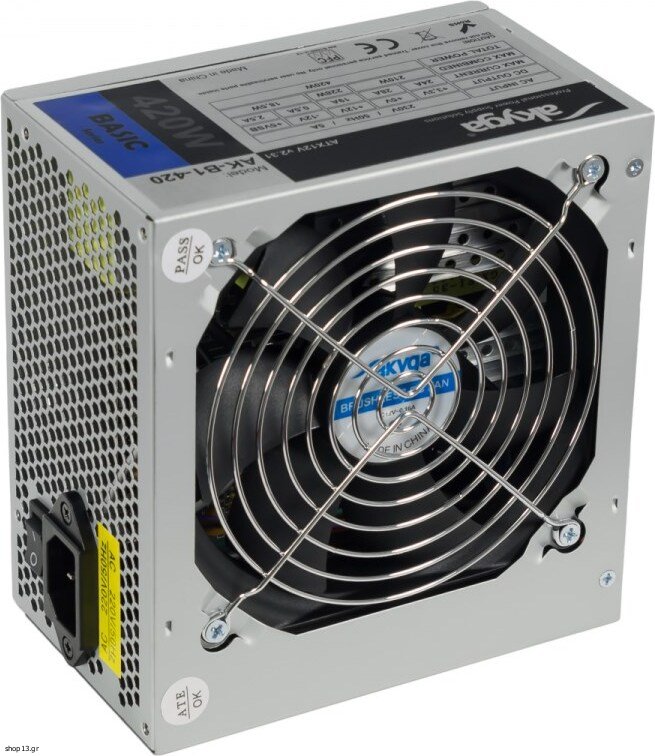

Akyga power supply unit 420 W 20+4 pin ATX ATX Grey - (AK-B1-420)

Technical details
Sustainability certificates: RoHS

Design
Product colour: Grey

Power
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Over power
Combined power (+5Vsb): 18.5 W
Max output current (+5Vsb): 2.5 A
Combined power (-12V): 18.5 W
Efficiency: 70%
AC input frequency: 50 Hz
Total power: 420 W
Combined power (+12V): 228 W
Combined power (+5V): 210 W
AC input voltage: 230 V
Max output current (+3.3V): 24 A
Input current: 5 A
Max output current (+5V): 28 A
Combined power (+3.3V): 210 W
Max output current (-12V): 0.5 A
Max output current (+12V): 19 A

Operational conditions
Operating temperature (T-T): 5 - 50 °C

Weight & dimensions
Width: 150 mm
Weight: 1.04 kg
Depth: 140 mm
Height: 85 mm

Performance
Power supply unit (PSU) form factor: ATX
Purpose: PC
Mean time between failures (MTBF): 100000 h
ATX version: 2.31

Packaging data
Package depth: 196 mm
Package height: 86 mm
Package weight: 1.05 kg
Package type: Box
Package width: 151 mm

Ports & interfaces
CPU P4 connector (4-pin): 1
ATX Power connector (20-pin): Y
Peripheral (Molex) power connectors (4-pin): 2
Number of SATA power connectors: 3
Motherboard power connector: 20+4 pin ATX


Warranty: warranty 24 months
