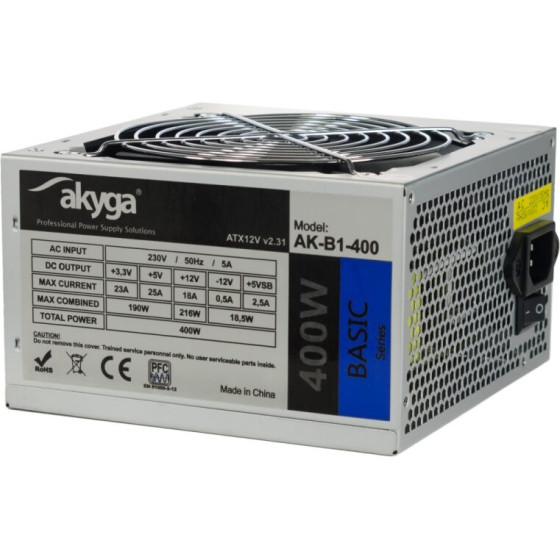

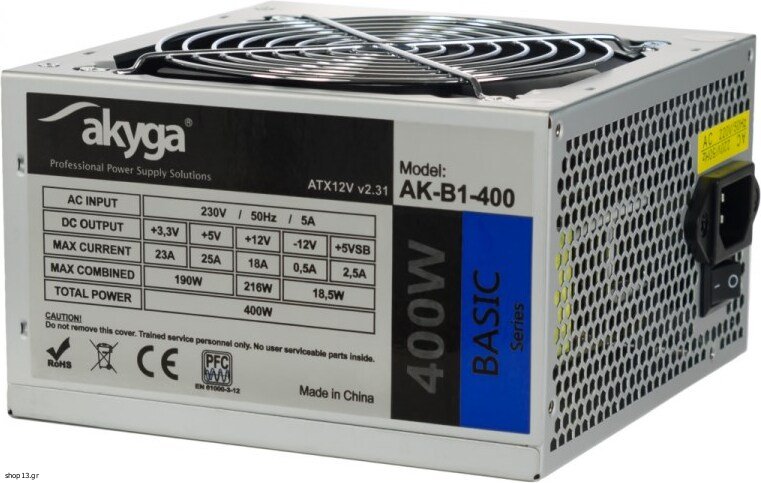

Akyga power supply unit 400 W 20+4 pin ATX ATX Green - (AK-B1-400)

Technical details
Sustainability certificates: RoHS

Design
Fan diameter: 12 cm
Product colour: Green
Number of fans: 1 fan(s)

Power
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Over power
Input current: 5 A
AC input frequency: 50 Hz
Total power: 400 W
Combined power (-12V): 18.5 W
Combined power (+5V): 190 W
Efficiency: 70%
AC input voltage: 230 V
Combined power (+3.3V): 190 W
Combined power (+12V): 260 W
Max output current (+3.3V): 23 A
Max output current (-12V): 0.5 A
Max output current (+12V): 18 A
Max output current (+5V): 25 A
Combined power (+5Vsb): 18.5 W
Max output current (+5Vsb): 2.5 A

Operational conditions
Operating temperature (T-T): 5 - 50 °C

Weight & dimensions
Depth: 140 mm
Width: 150 mm
Weight: 1.03 kg
Height: 87 mm

Performance
Power supply unit (PSU) form factor: ATX
Purpose: PC
ATX version: 2.31

Packaging data
Package height: 88 mm
Package depth: 190 mm
Package type: Box
Package width: 151 mm
Package weight: 1.03 kg

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 2
Number of SATA power connectors: 3
Motherboard power connector: 20+4 pin ATX


Warranty: warranty 24 months
