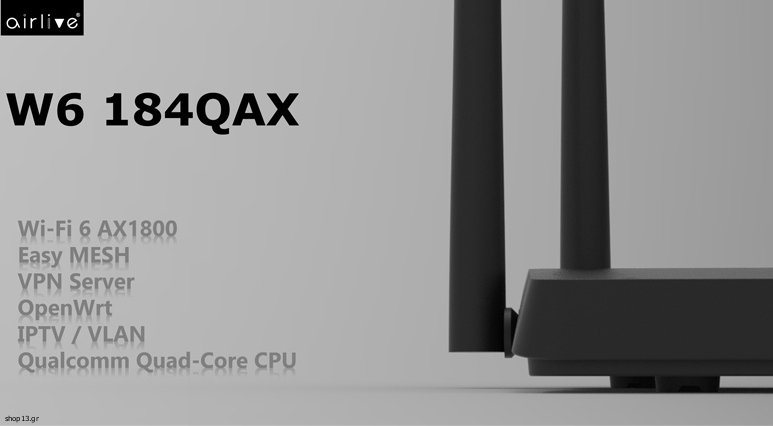

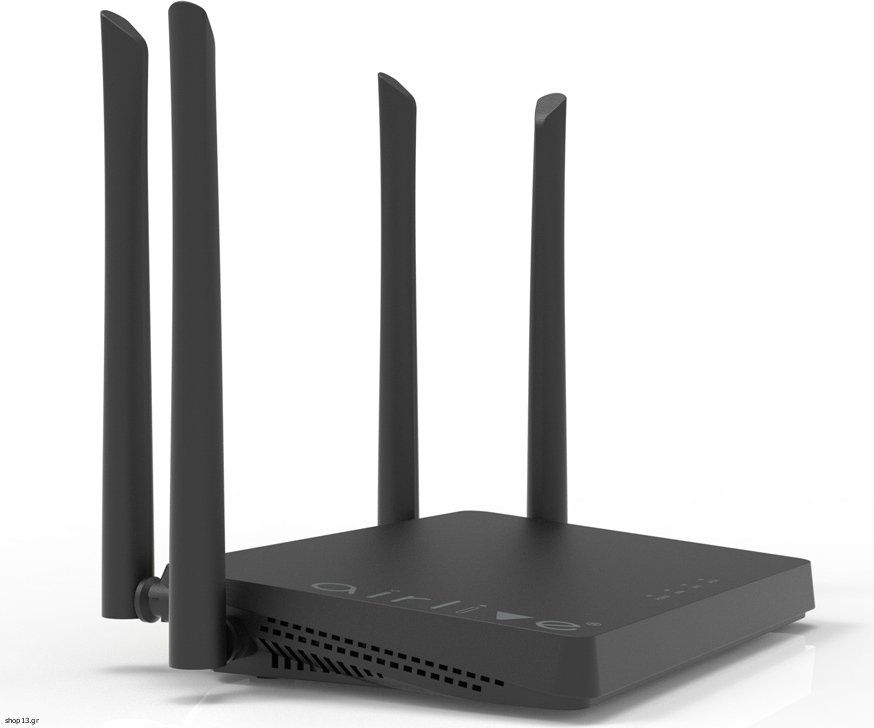

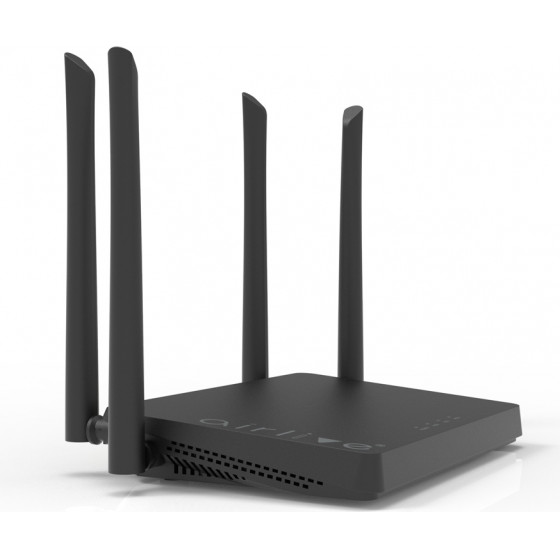

AIRLIVE mesh router W6184QAX, WiFi 6 dual band, AX1800, 4x Gigabit ports
Το mesh router W6184QAX της AirLive υποστηρίζει τεχνολογία dual-band WiFi 6 11a/b/g/n/ax στα 5GHz και 2.4GHz, με ταχύτητες έως 1800 Mbps, γεγονός που το καθίστα ιδανικό για παρακολούθηση ταινιών, διαδικτυακά παιχνίδια ή άλλες απαιτητικές εργασίες.

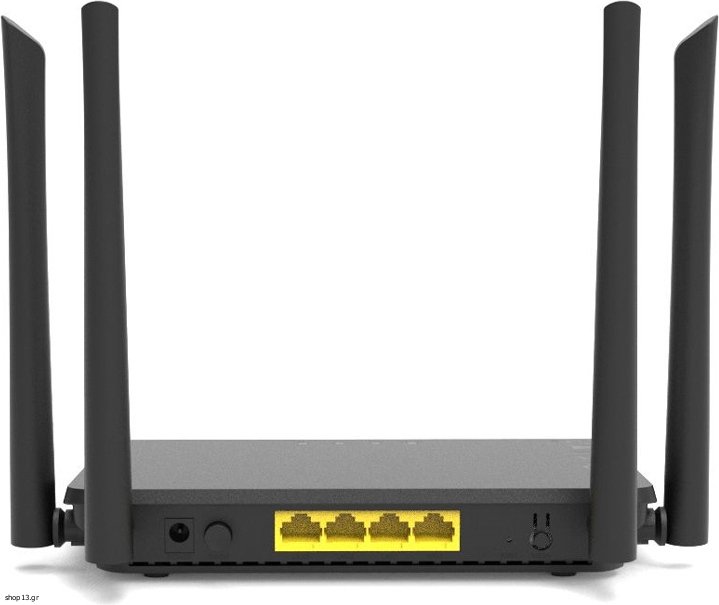

Διαθέτει 3x θύρες 10/100/1000mbps LAN και 1x 10/100/1000mbps WLAN.
-Wi-Fi 6 2.4Ghz 40Mhz, 2x2 at 574Mbps, 90% faster than 11ac 1200
-Wi-Fi 6 5Ghz 80Mhz, 2x2 at 1201Mbps, 40% faster than 11ac 1200
-Advanced Qualcomm Quad-Core CPU and DDR3 256MB high memory, support stable connection up to 128 devices
-OFDMA + MU-MIMO + Range Boost + 1024QAM +OSBB
-Support IPTV/VLAN
-Support latest WPA3 advanced security protocol
-Support Parental Control (Black/White list, URL control)
-Smart Easy MESH Roaming
-VPN for remote working
-Preload OpenWrt
Τεχνικά χαρακτηριστικά
Device Interface
Main Chip: Qualcomm IPQ6000, Quad Core, 64-bit
Flash:128MB
RAM:DDR3 256MB
Ethernet (LAN): 3 x RJ45 10/100/1000mbps
WAN: 1x RJ-45 10/100/1000mbps
WiFi: 2x 802.11ax/ac/n 2T2R(2.4Ghz), 2x 802.11ax/ac 2T2R (5Ghz)
Button: WPS/Reset x1, MESH x 1, Power x1
Power Input: 1x 12VDC 1 or 1.5A acceptable
Antenna Connector: 2x Wireless Antenna (5Ghz), 2x Wireless Antenna (2.4Ghz)
WAN
WAN: PPPoE, DHCP, Static IP, Transparent Bridge,
WiFi
Standard: IEEE 802.11a/b/g/n/ax, 2x2, 20/40/80 MHz channels
Functions: Multi-SSID, SSID hidden ,SSID isolation
Security: WEP, WPA, WPA2, WPA3,WPA-PSK, 802.1x
Modulation: 1024-QAM modulation rates
Wi-fi Advanced: Wireless client isolation, STBC, WMM multimedia acceleration
Wireless Channel: 2.4G:1~13 / 5.8G(CEChannel):36, 40, 44, 48, 52 , 56, 60, 64, 100, 108, 112, 116, 120, 124, 128, 132, 136, 140
Wireless TX Power: 2.4G:20dbm MAX; 5.8G:TX 23dbm MAX
IPv6
IPv6 RA/ Prefix apps
Firewall/Filtering:
Firewall Level: high, Middle, low
-Filter Rule: URL Filter/Mac Filter
-URL filtering: White list/Black List.
DMZ: DMZ
-IPTV: VLAN support, IPv4, IPv6
-LAN1/LAN2/LAN3 Port Forwarding Rule/Range
-TCP/UDP
VPN
-PPTP L2TP VPN Server
-L2TP/PPTP client
UPnP: Upnp
DDNS: 3322.org, dyndns.org, no-ip.com, easydns.com, dnsexit.com, Dnsomatic.com, he.net, dnsdynamic.org
Parental Control: Mac Address Filtering, URL Filtering
MESH: Easy Mesh, Controller, Agent, Status
SNMP: V1/2c agent Data Statistics, Lan, WAN, WiFi 2.4G, WiFi 5.8G
Multiple Language: English / Arabic / Turkish
Environment: Operating temperature: 0°C ~ +50°C, Humidity:10% ~ 90% (non-condensing)
Περιεχόμενα συσκευασίας
Mesh router
Αντάπτορας τροφοδοσίας
Κωδικός είδους:W6184QAX
Κατασκευαστής:AIRLIVE
Εγγύηση:12 μήνες
Διαστάσεις Συσκευασίας:27 x 4.5 x 28 cm
Βάρος Συσκευασίας:0.627 Kg
Τύπος συσκευασίας:Retail
