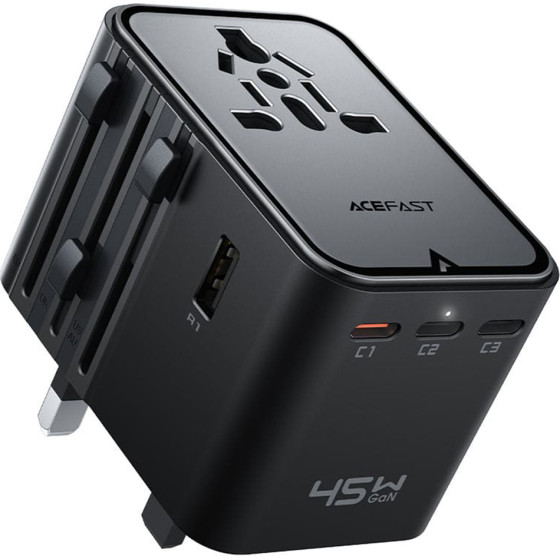

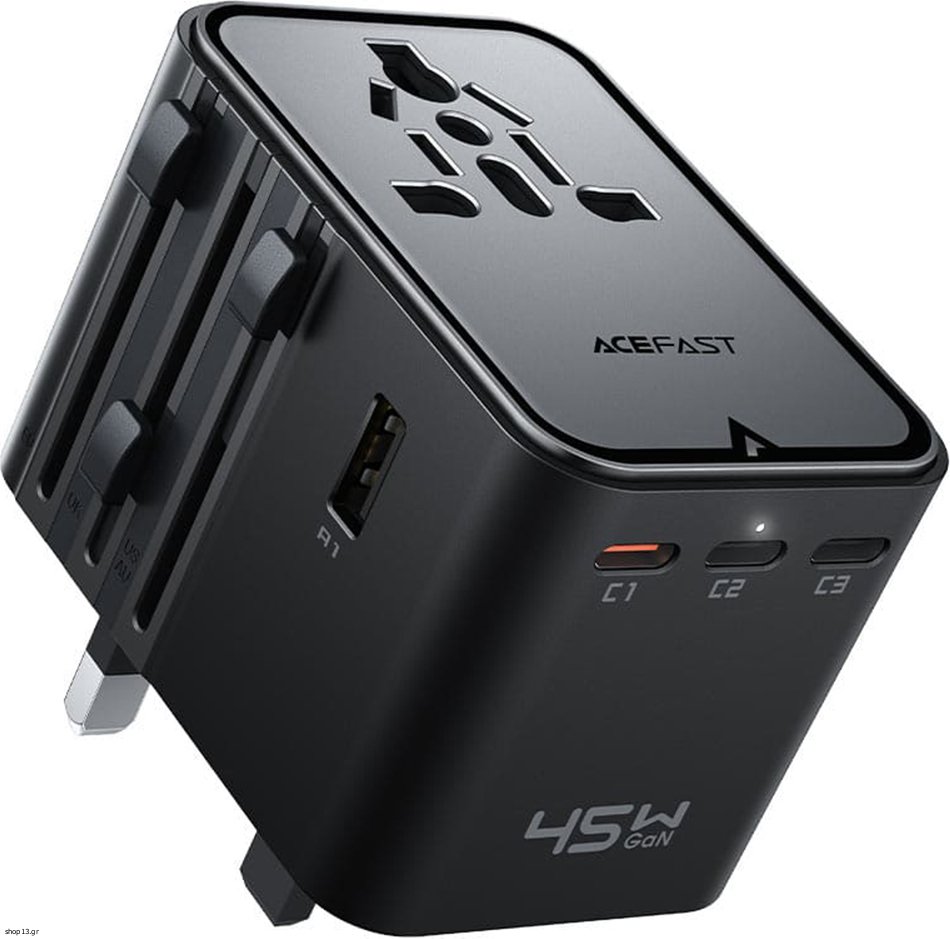

Acefast - Travel Adapter (Z8) - 3x USB-C, 2x USB, EU, UK, AUS, US, 45W, Gan Technology, Fast Charging - Black

Construction

The housing is made of industrial grade plastics with flame retardant properties. It protects the modules (performance).

GaN semiconductors for the conversion stages

The product remains relatively small in volume but capable of handling high currents and delivering sustained power without overheating.

Technical specifications:

Input: AC 100-250 V ~ 50/60 Hz;

Port configuration: 3x USB-C, 2x USB;

AC outlet power: 2500W at 250V (10A max);

Detailed USB outputs:

USB-C1 (main port): 3.3-16V ? 2.8A (PPS), 5V / 9V / 12V / 15V ? 3A;
Max Power: 45W;

Protocols: PPS / PD3.0 / PD2.0 / QC4+ / QC3.0 / AFC / FCP / SCP;


USB-C2 and USB-C3: 5V ? 3A,
Max Power: 15W;


USB-A1 and USB-A2: 5V ? 2.4A;
Max Power: 12W;


Combined Power (Multiple Ports):

- 4 ports (USB-C2 + USB-C3 + USB-A1 + USB-A2): 5V ? 3A - 15W

- 5 ports (USB-C1 + other 4): 30W + 15W = 45W max;

Dimensions: 75.3 x 52.5 x 50.3mm;

Weight: 163g.
