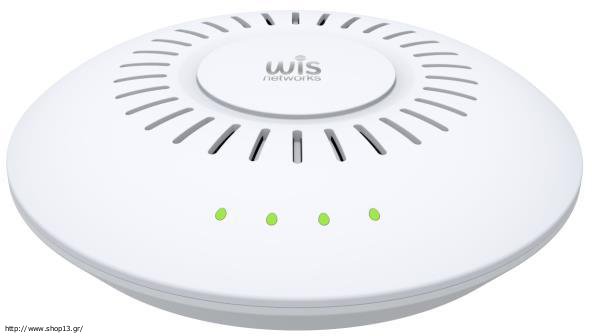

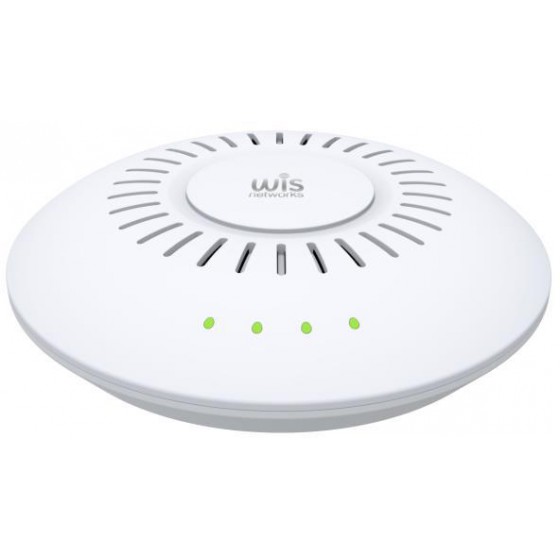

ACCESS POINT 300MBPS 2.4GHZ WIS WCAP-HP CLOUD

Overview:The WisCloud Indoor Access Point is the innovative series of products with remarkable performance in their features. All configuration and management is centrally and effectively operated by the WisCloud Controller. The high speed 600MHz Atheros CPU and 64MB DDR makes WisCloud access points much powerful to provide a stable connectivity and multifunctional wireless networks. To meet different requirements from customers, we provide corresponding AP with different feature parameters including frequency, speed, tx power and installation method etc.


Features:

Physical Characteristics
Processor Atheros SoC 560MHz
Flash / Memory 64MB DDR, 16MB Flash
LAN Port 1*10/100M Base-T
Button Reset
Power 24VDC/0.75A Passive POE
Dimension

φ195*45mm
Mounting Ceiling Mount/Wall Mount
Certification CE/RoHS
Max Power Consumption 10W
Working Temperature -10~60
Working Humidity
10%~95% non-condensing
Wireless Characteristics
Wi-Fi Standard 802.11n/g/b
Frequency 2.4GHz
Speed 300Mbps
Max Tx Power 27dBm (23dBm for Philippines ONLY)
Antenna 3dBi Dual-Pola Omni
Multi-SSID up to 8 SSID Per Radio
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Concurrent Clients 100+
Coverage Range 180m


Advanced Characteristics
Mode Fat AP/Fit AP
VLAN 802.1q
Guest Policy Web Portal/Password
MAC Filter Blacklist
User QoS Speed Limit by User Group
Traffic History Duration/Download/Upload
Load Balance Online User / Bandwidth
Roaming Supported
