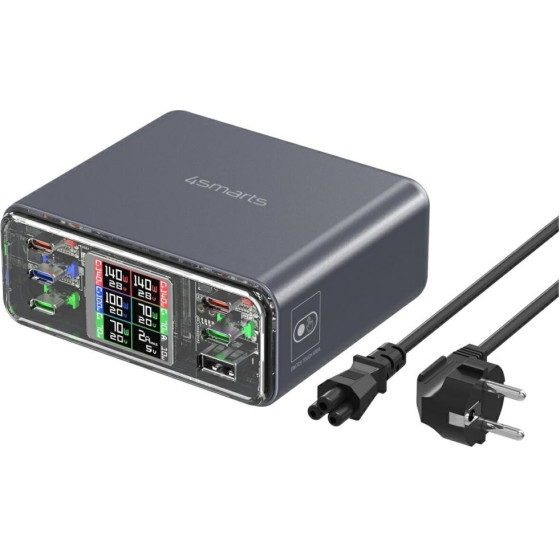

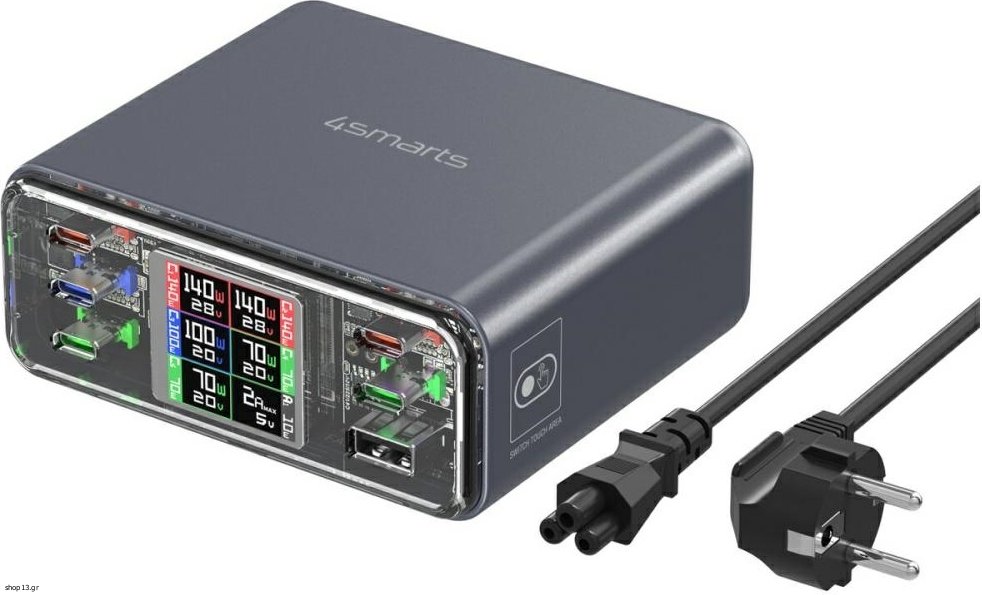

4smarts Lucid GaN DIY 360W Desktop Charger
The 4smarts Lucid GaN DIY 360W desktop charger in elegant space gray is a powerful power hub designed for demanding users who need to charge multiple devices simultaneously -- from smartphones and tablets to laptops, consoles, or monitors. Thanks to innovative GaN (Gallium Nitride) technology, the device offers massive 360W output while maintaining compact dimensions, high energy efficiency, and low operating temperature.
The Lucid GaN DIY 360W model stands out with its modular DIY (Do It Yourself) design, allowing flexible port configuration according to individual needs. This makes the charger not only a standard desktop station but also an intelligent power hub for charging devices at work, home, or even in studio environments.
Built-in USB-C ports with Power Delivery (PD 3.1) support allow charging of high-power laptops, while additional USB-A ports with Quick Charge (QC 3.0) technology ensure fast charging for phones and accessories. The total 360W output power allows simultaneous charging of multiple high-power devices without performance loss.
The charger features a clear LED display showing real-time operation parameters and power distribution between ports. The intelligent power management system automatically detects connected devices and adjusts voltage and current accordingly, ensuring safe and efficient charging.
The high-quality aluminum alloy housing in space gray gives the device a sleek, modern look and ensures excellent heat dissipation. Minimalist design, solid craftsmanship, and premium-class performance make the 4smarts Lucid GaN DIY 360W an essential addition to any desk -- both at work and at home.
The 4smarts Lucid GaN DIY 360W is more than just a charger -- it’s a true power hub for modern technology. It combines power, safety, and aesthetics, creating the perfect solution for professionals, creators, and anyone who expects maximum performance in a compact form.
Technical Specifications
Manufacturer4smarts
Article Number540360
GTIN4252011911097
CategoryWall Chargers
ModelLucid GaN DIY 360W
ColorSpace Grey
TechnologyGaN (Gallium Nitride)
Total Power360 W
Input PowerAC 220-240 V, 50-60 Hz, 2.5 A
Number of Ports6 (5x USB-C + 1x USB-A)
Port 1 (USB-C)140 W - 5V?3A, 9V?3A, 12V?3A, 15V?3A, 20V?5A, 28V?5A
Port 2 (USB-C)140 W - 5V?3A, 9V?3A, 12V?3A, 15V?3A, 20V?5A, 28V?5A
Port 3 (USB-C)100 W - 5V?3A, 9V?3A, 12V?3A, 15V?3A, 20V?5A
Port 4 (USB-C)70 W - 5V?3A, 9V?3A, 12V?3A, 15V?3A, 20V?3.5A
Port 5 (USB-C)70 W - 5V?3A, 9V?3A, 12V?3A, 15V?3A, 20V?3.5A
Port 6 (USB-A)10 W - 5V?2A
Total Output PowerUp to 360 W (dynamic power distribution)

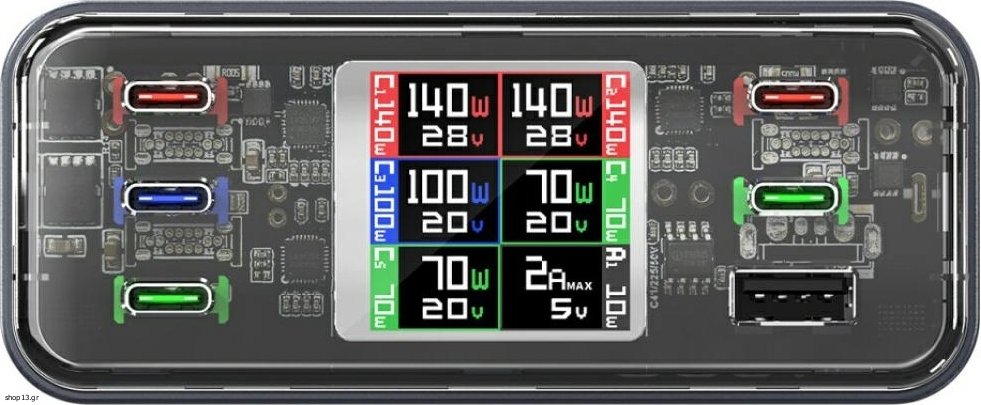

DisplayColor TFT screen with auto rotation and charging power information
Operating Modes3 power distribution modes - selectable by button
Power Management SystemAutomatic device detection and voltage adjustment
ProtectionsOverheat, overload, overvoltage, and short-circuit protection
Charging StandardsPD 3.1 / 3.0, PPS, QC 4+, SCP, FCP, AFC, Apple 2.4A, MTK-PE, UFCS
Case MaterialAluminum + ABS (flame retardant)
Dimensions200 x 95 x 40 mm
Weightapprox. 0.68 kg
Shipping Weightapprox. 0.74 kg
Power Cable Length1.5 m

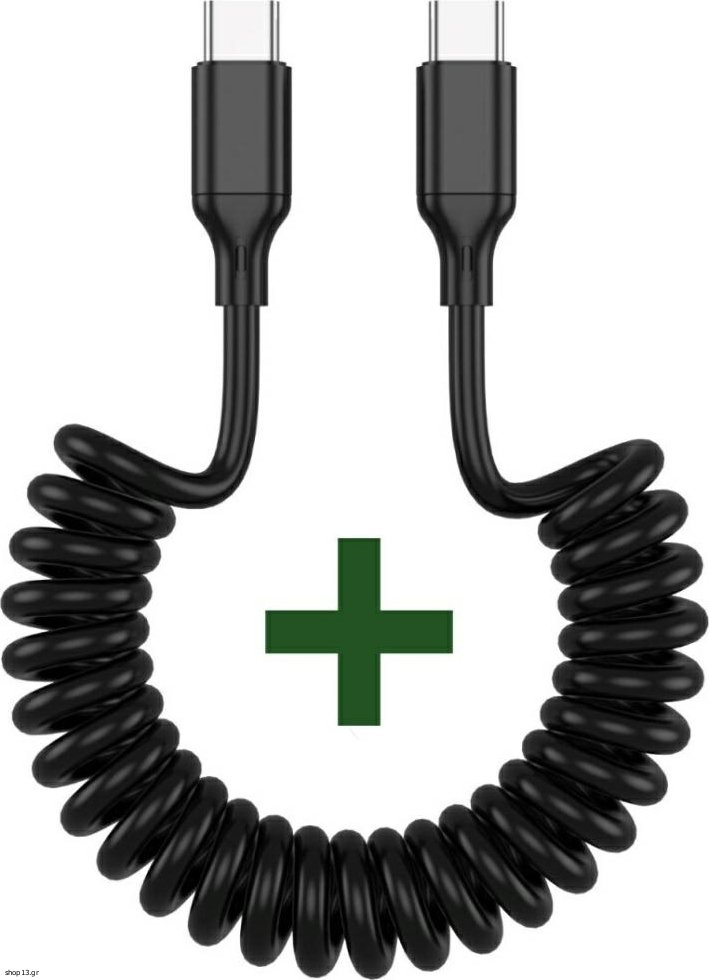

Included CableSpiral Cable 240W (12-50 cm)
CertificationsCE, FCC, RoHS
CompatibilityLaptops, tablets, smartphones, consoles, power banks, accessories (Apple, Samsung, Huawei, Lenovo, HP, Dell, ASUS, etc.)
Package ContentsLucid GaN DIY 360W charger, 1.5 m power cable, 240W spiral cable, user manual
Packaging TypeRetail Box with hanging hole
Warranty24 months
